Texas Instruments provides a recommended PCB layout in the TUSB422IYFPT datasheet, but it's also recommended to follow the guidelines in the 'USB 2.0 Layout Guidelines' application report (SLVA079) from Texas Instruments. This report provides detailed information on PCB layout, routing, and component placement for USB devices.
To ensure EMI compliance, follow the guidelines in the 'EMI Compliance for USB' application report (SLVA082) from Texas Instruments. This report provides information on EMI mitigation techniques, such as shielding, filtering, and layout considerations. Additionally, use a USB 2.0-compliant connector and cable, and ensure that the device is properly grounded.
The TUSB422IYFPT supports cable lengths up to 3 meters (10 feet) as specified in the USB 2.0 specification. However, the actual cable length may be limited by the signal quality, noise, and attenuation. It's recommended to use high-quality, shielded cables and to follow the guidelines in the 'USB 2.0 Cable and Connector Specification' (Rev 2.0) for optimal performance.
The TUSB422IYFPT is a USB 2.0 transceiver and is not compatible with USB 3.0 or USB 3.2 systems. It's designed to operate at a maximum data rate of 480 Mbps, which is the maximum data rate for USB 2.0. If you need to support higher data rates, you should consider using a USB 3.0 or USB 3.2 transceiver, such as the TUSB1310A or TUSB5241 from Texas Instruments.
The TUSB422IYFPT has a built-in power management feature that allows it to enter a low-power state when the USB bus is idle. This feature can be controlled through the SUSPEND pin. Additionally, the device has a low-power mode that can be enabled through the PMODE pin. It's recommended to follow the guidelines in the datasheet and the 'USB 2.0 Power Management' application report (SLVA081) from Texas Instruments for proper power management.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TUSB422IYFPT Overview

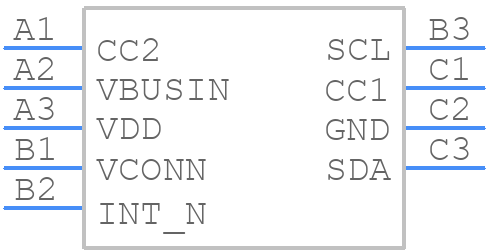

Use the download button to access the TUSB422IYFPT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TUSB4,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
