Texas Instruments provides a recommended PCB layout in the TUSB522PRGER datasheet, which includes guidelines for component placement, routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance and minimize electromagnetic interference (EMI).
The TUSB522PRGER supports multiple USB speeds, including Low-Speed, Full-Speed, and High-Speed. To configure the device for different USB speeds, you need to adjust the external resistors and capacitors according to the datasheet. Additionally, you may need to modify the firmware to select the desired speed.
The TUSB522PRGER has built-in power management features, including overcurrent protection, undervoltage lockout, and power-down mode. You can also use external power management ICs to further optimize power consumption and reduce heat generation.
To ensure EMC with the TUSB522PRGER, follow the recommended PCB layout and routing guidelines, use shielding and grounding techniques, and implement EMI filtering and shielding on the USB lines. Additionally, consider using a USB common-mode choke and ferrite beads to reduce EMI emissions.
The TUSB522PRGER has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate thermal management, including heat sinking, thermal pads, and airflow management. You should also consider the thermal characteristics of the PCB and surrounding components.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TUSB522PRGER Overview

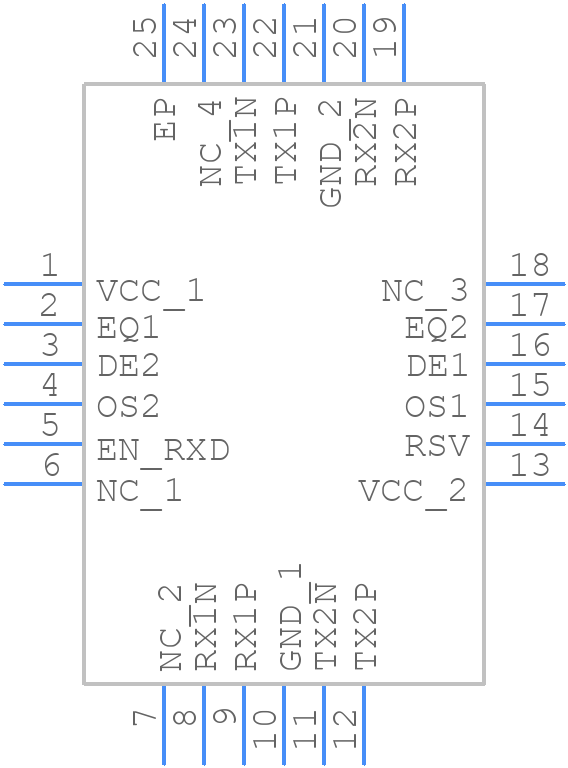

Use the download button to access the TUSB522PRGER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TUSB5,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
