For optimal performance, it is recommended to follow the PCB layout and routing guidelines provided in the TUSB7340 application note (SLUA623) and the High-Speed USB Layout Guidelines (SLIT634). This includes using a solid ground plane, minimizing trace lengths, and avoiding vias and right-angle turns.
To ensure EMI compliance, follow the EMI mitigation guidelines in the TUSB7340 application note (SLUA623). This includes using a shielded cable, minimizing loop areas, and using EMI filters or common-mode chokes. Additionally, ensure that the system meets the requirements of the relevant EMI standards, such as FCC Part 15 or EN 301 489-17.
The TUSB7340 has a maximum junction temperature of 150°C. To ensure reliable operation, it is recommended to keep the device temperature below 125°C. This can be achieved by using a heat sink, ensuring good airflow, and minimizing power consumption. Refer to the thermal management guidelines in the TUSB7340 datasheet and application note (SLUA623).
The TUSB7340 requires a 3.3V power supply. It is recommended to use a low-dropout linear regulator (LDO) or a switching regulator to ensure a stable and regulated power supply. Additionally, consider using power sequencing and voltage monitoring to ensure proper power-up and power-down sequences.
When using the TUSB7340 in a USB 3.0 application, ensure that the system meets the USB 3.0 specification requirements, including signal integrity, jitter, and eye diagram requirements. Additionally, consider using a USB 3.0 redriver or repeater to extend the cable length and improve signal quality.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TUSB7340RKMR Overview

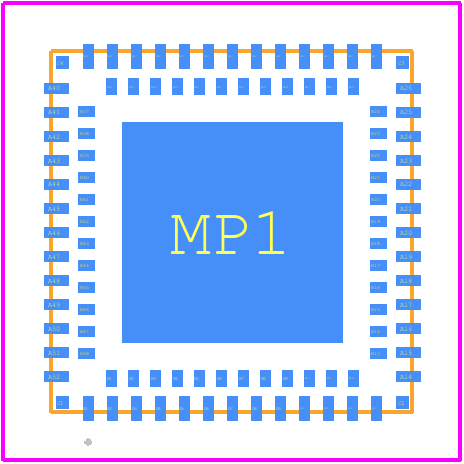

Use the download button to access the TUSB7340RKMR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TUSB7,
or try a keyword search, such as Bus Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
