FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Screening Level:
AEC-Q100
Seated Height-Max:
1.2 mm
Supply Voltage-Max:
1.155 V
Supply Voltage-Min:
1.045 V
Supply Voltage-Nom:
1.1 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
10 mm
uPs/uCs/Peripheral ICs Type:
BUS CONTROLLER, UNIVERSAL SERIAL BUS
TUSB9261IPAPQ1 Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and using decoupling capacitors to ensure signal integrity.
The TUSB9261IPAPQ1 supports multiple USB speeds, including Low-Speed, Full-Speed, and High-Speed. Configuration is done through the device's registers, which can be accessed through the I2C interface. Refer to the datasheet for specific register settings and configuration details.
The TUSB9261IPAPQ1 has a typical operating current of 100 mA and a maximum current of 150 mA. Thermal considerations include a maximum junction temperature of 150°C and a thermal resistance of 30°C/W. Ensure proper heat sinking and thermal management to prevent overheating.
ESD protection is crucial for the TUSB9261IPAPQ1. Implement ESD protection using external components, such as TVS diodes or ESD arrays, on the USB data lines and power rails. Follow the datasheet's guidelines for ESD protection circuitry and component selection.
The TUSB9261IPAPQ1 requires firmware to configure and control its operation. Texas Instruments provides a software development kit (SDK) and example code to help with firmware development. The SDK includes APIs, drivers, and documentation to facilitate integration with the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TUSB9261IPAPQ1 Overview

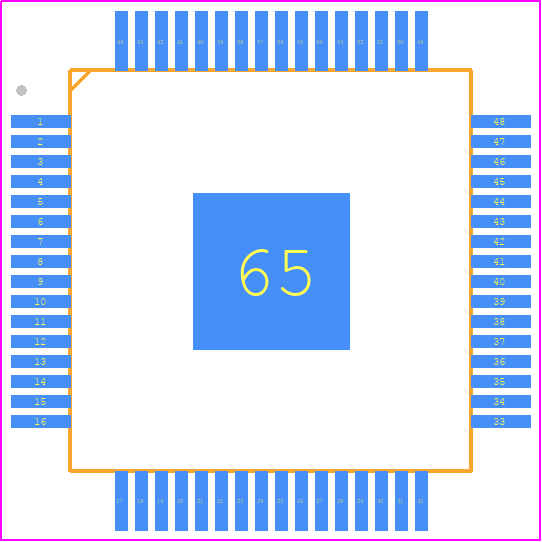

Use the download button to access the TUSB9261IPAPQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TUSB9,
or try a keyword search, such as Bus Controllers
