TVP5150AM1PBSR - Texas Instruments

Description: TEXAS INSTRUMENTS - TVP5150AM1PBSR - VIDEO DECODER, NTSC/PAL/SECAM, TQFP-32

Download TVP5150AM1PBSR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

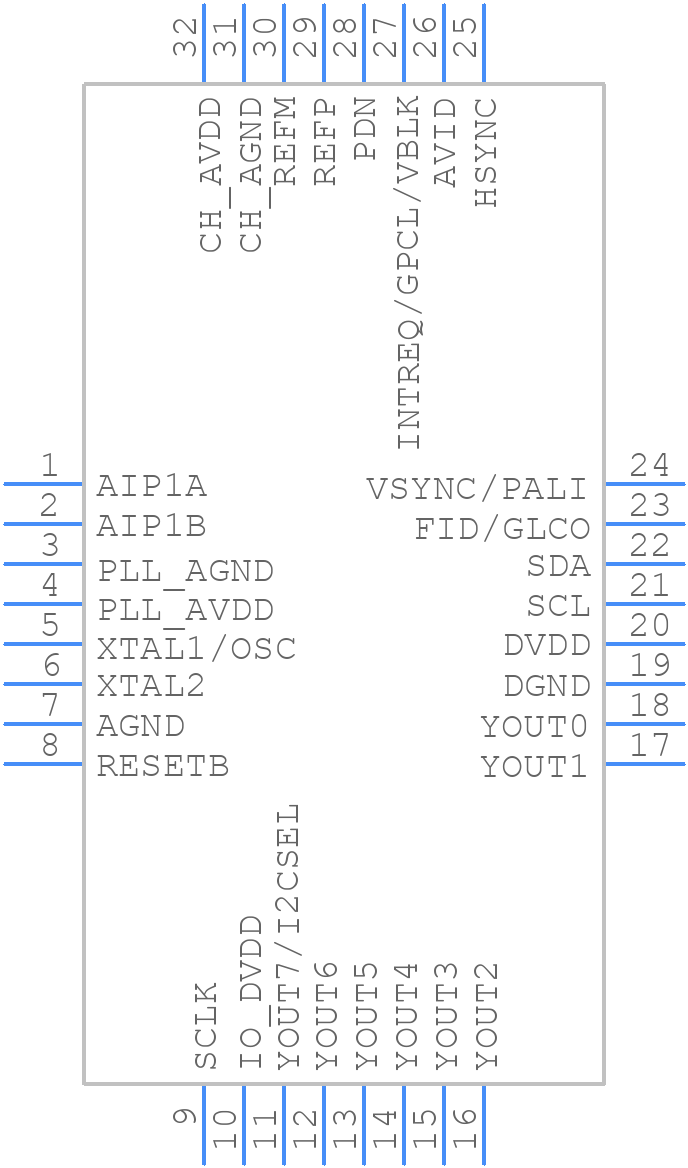

TVP5150AM1PBSR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TVP5150AM1PBSR - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - TVP5150AM1PBSR
click to zoom
3D Models
TVP5150AM1PBSR - Texas Instruments - 3D model - Quad Flat Packages - TVP5150AM1PBSR
click to zoom

TVP5150AM1PBSR Details

  • Manufacturer Part Number:

    TVP5150AM1PBSR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Pin Count:

    32

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    COLOR SIGNAL DECODER

  • Input Type:

    R-Y; B-Y; Y

  • JESD-30 Code:

    S-PQFP-G32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Equivalence Code:

    TQFP32,.28SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    32.9 mA

  • Supply Voltage-Max (Vsup):

    1.95 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Video Standard:

    PAL;NTSC;SECAM

  • Width:

    5 mm

TVP5150AM1PBSR Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply power to the analog supply (AVDD) first, followed by the digital supply (DVDD). This ensures that the analog circuitry is powered up before the digital circuitry.
  • The TVP5150 can be configured for different video input formats using the I2C interface. The device has a set of registers that can be programmed to select the input format, such as NTSC, PAL, or SECAM. Refer to the datasheet for the specific register settings for each format.
  • The maximum clock frequency that can be used with the TVP5150 is 27 MHz. Exceeding this frequency may result in unstable operation or damage to the device.
  • The TVP5150 outputs a digital video signal in ITU-R BT.656 format. This signal can be connected to a digital video encoder or a video processor for further processing. The output signal is also compatible with the I2S (Inter-IC Sound) bus, allowing it to be connected to audio codecs or other I2S-compatible devices.
  • The power consumption of the TVP5150 depends on the operating mode and the clock frequency. In active mode, the device consumes around 250 mW at 27 MHz. In standby mode, the power consumption is reduced to around 10 mW.
