The recommended power-up sequence is to apply power to the analog power pins (VAA and VDD) first, followed by the digital power pins (VDDIO and VDDC). This ensures that the analog circuits are powered up before the digital circuits.
The TVP5151PBS can be configured for different video input formats using the I2C interface. The device has a set of registers that control the video input format, such as the input standard, clock frequency, and sync polarity. Refer to the datasheet for the specific register settings for each format.
The maximum cable length supported by the TVP5151PBS depends on the video input format and the quality of the cable. As a general guideline, the device can support cable lengths of up to 100 meters for SD-SDI, 50 meters for HD-SDI, and 20 meters for 3G-SDI. However, it's recommended to use high-quality cables and to follow proper cable termination and routing practices to ensure reliable operation.
To troubleshoot video signal issues with the TVP5151PBS, start by checking the video input signal quality using an oscilloscope or a video signal analyzer. Verify that the input signal meets the device's specifications and that the clock frequency and sync polarity are correct. Also, check the device's status registers to see if there are any error flags set. If the issue persists, try resetting the device or re-configuring the video input format.
The TVP5151PBS is designed to support standard video input formats such as SD-SDI, HD-SDI, and 3G-SDI. However, it may be possible to use the device with non-standard video input formats by customizing the device's configuration registers. Contact Texas Instruments support for more information and guidance on customizing the device for non-standard formats.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TVP5151PBS Overview

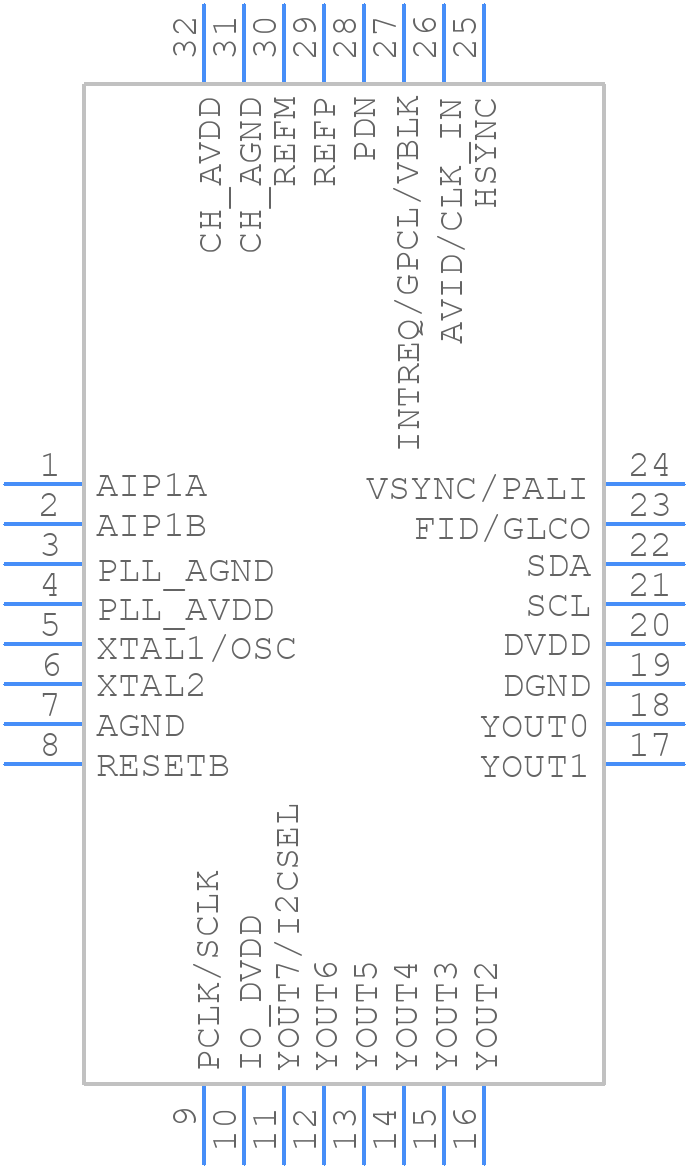

Use the download button to access the TVP5151PBS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TVP51,
or try a keyword search, such as Color Signal Converters
