TVP5151PBSR - Texas Instruments

Description: Ultralow-Power NTSC/PAL/SECAM Video Decoder

Download TVP5151PBSR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

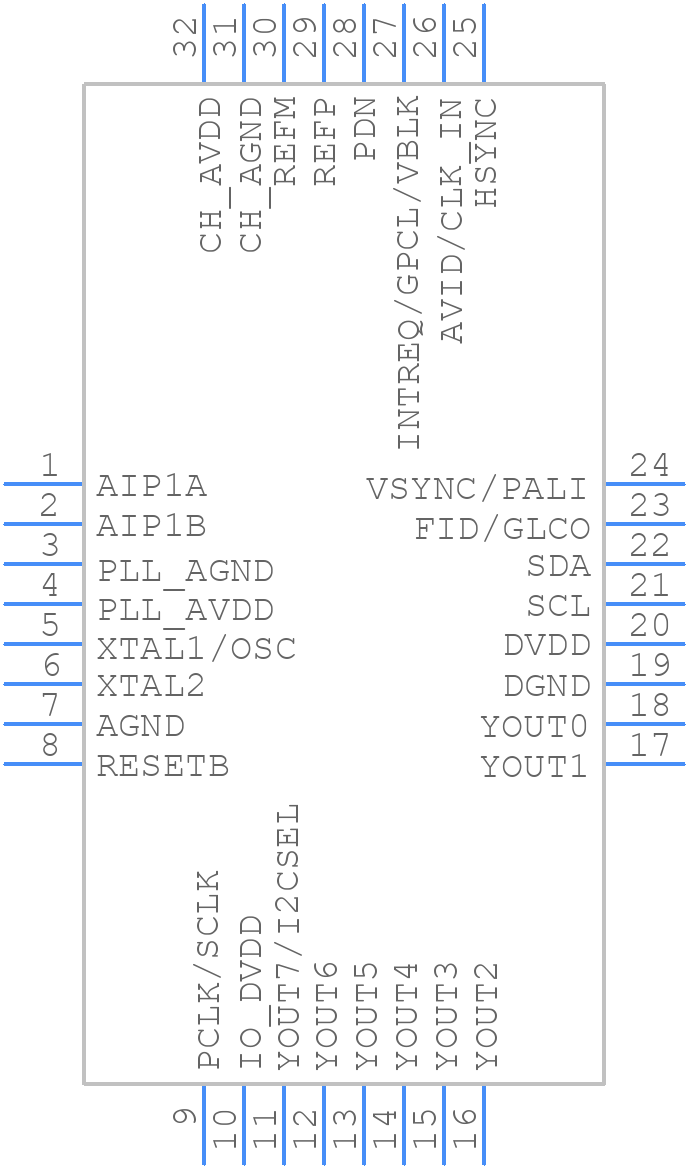

Symbol
TVP5151PBSR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TVP5151PBSR - Texas Instruments PCB footprint - Other - Other - QFP50P700X700X120-32N
click to zoom
3D Models
TVP5151PBSR - Texas Instruments - 3D model - Other - QFP50P700X700X120-32N
click to zoom

TVP5151PBSR Details

  • Manufacturer Part Number:

    TVP5151PBSR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Pin Count:

    32

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    COLOR SIGNAL DECODER

  • Input Type:

    R-Y; B-Y; Y

  • JESD-30 Code:

    S-PQFP-G32

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Equivalence Code:

    TQFP32,.28SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    39.2 mA

  • Supply Voltage-Max (Vsup):

    1.95 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Video Standard:

    PAL; NTSC; SECAM

TVP5151PBSR Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply power to the analog supply (AVDD) first, followed by the digital supply (DVDD). This ensures that the analog circuitry is powered up before the digital circuitry.
  • The TVP5151 can be configured for different video standards (e.g. NTSC, PAL, SECAM) by setting the appropriate values for the VID_STD[2:0] pins. Refer to the datasheet for the specific pin settings for each standard.
  • The maximum clock frequency for the TVP5151 is 27 MHz. Exceeding this frequency may result in unstable operation or damage to the device.
  • The TVP5151 outputs 8-bit or 10-bit 4:2:2 YCbCr data. The output data format can be configured using the DATA_FMT[1:0] pins. The device also provides a data valid signal (DV) to indicate when the output data is valid.
  • The AGC function in the TVP5151 is used to automatically adjust the gain of the video signal to optimize the signal-to-noise ratio. This helps to improve the overall video quality and reduce noise.
