FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Voltage-Max (Vsup):
2 V
Supply Voltage-Min (Vsup):
1.8 V
Surface Mount:
YES
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
14 mm
TVP7001PZP Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TVP7001PZP evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and grounding to minimize noise and EMI.
To optimize the TVP7001PZP for low-power consumption, use the lowest possible clock frequency, disable unused features, and adjust the bias current settings. Additionally, consider using the device's power-down modes and dynamic voltage scaling.
The maximum cable length supported by TVP7001PZP for HDMI output depends on the cable quality and the signal frequency. As a general guideline, Texas Instruments recommends using cables up to 10 meters long for 1080p resolution and up to 5 meters long for 4K resolution at 30 Hz.
Yes, the TVP7001PZP can be used with an external clock source. The device has a clock input pin that can be connected to an external clock source, allowing for synchronization with other devices or systems.
To troubleshoot HDMI output issues with TVP7001PZP, check the device's configuration and settings, ensure that the HDMI output is enabled, and verify that the clock frequency and signal amplitude are within the recommended specifications. Additionally, use an oscilloscope or a logic analyzer to debug the HDMI signal and identify any issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TVP7001PZP Overview

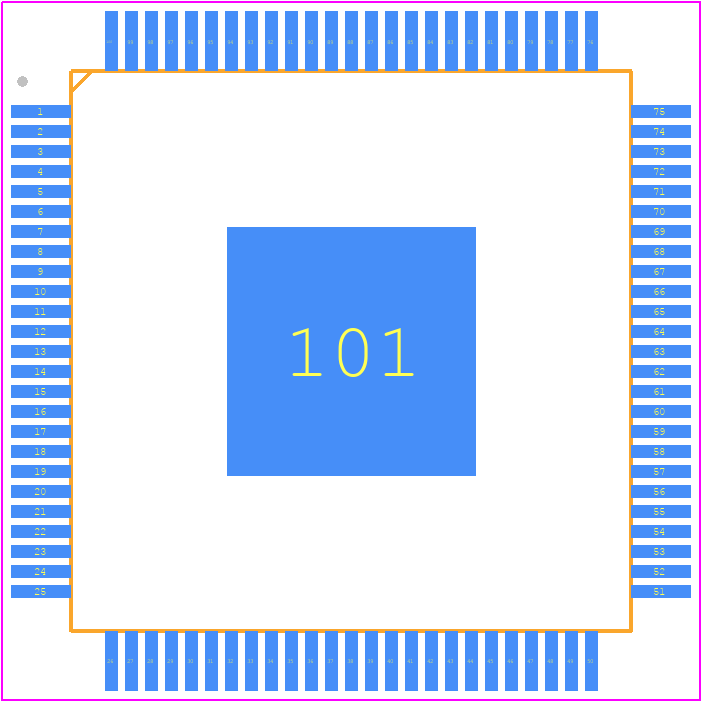

Use the download button to access the TVP7001PZP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TVP70,
or try a keyword search, such as Other Consumer ICs
