FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Voltage-Max (Vsup):
1.95 V
Supply Voltage-Min (Vsup):
1.7 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
14 mm
TVP70025IPZPR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TVP70025IPZPR evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The TVP70025IPZPR is a highly configurable device, and the configuration process involves setting registers and pins to specific values. Texas Instruments provides a detailed configuration guide in the device's user guide, as well as a software development kit (SDK) with example code and APIs to simplify the process.
The TVP70025IPZPR supports cable lengths of up to 10 meters at 1080p resolution, and up to 5 meters at 4K resolution, assuming a high-quality cable with minimal signal attenuation. However, the actual cable length supported may vary depending on the specific application and environment.
Texas Instruments provides a range of troubleshooting tools and resources, including a debug guide, FAQs, and application notes. Engineers can also use oscilloscopes and logic analyzers to debug the device's digital and analog signals, and consult with Texas Instruments' support team for further assistance.
The TVP70025IPZPR is a highly versatile device that can be used in a wide range of systems and platforms. However, compatibility depends on factors such as the system's operating frequency, power supply, and interface requirements. Engineers should consult the device's datasheet and user guide, and contact Texas Instruments' support team if necessary, to determine compatibility with their specific system or platform.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TVP70025IPZPR Overview

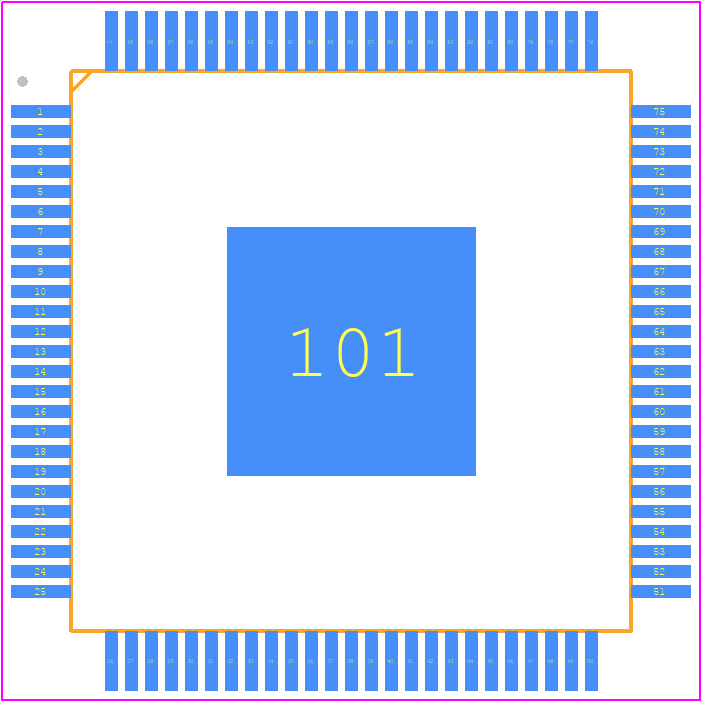

Use the download button to access the TVP70025IPZPR schematic symbol, PCB footprint, and 3D model.
