Texas Instruments provides a recommended PCB layout in the TVP7002PZP evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management.
To optimize the TVP7002PZP for low power consumption, use the lowest possible clock frequency, disable unused features, and adjust the voltage regulator module (VRM) settings. Additionally, consider using the device's power-down modes and dynamic voltage and frequency scaling (DVFS).
The TVP7002PZP has a maximum junction temperature of 125°C. Ensure good thermal conductivity between the device and the PCB, use thermal vias, and consider using a heat sink or thermal interface material to maintain a safe operating temperature.
Follow proper PCB design and layout guidelines, use shielding and filtering, and ensure that the device is properly grounded. Additionally, consider using electromagnetic interference (EMI) filters and shielding on the device's inputs and outputs.
Implement robust error detection and correction mechanisms, use redundant systems and fail-safes, and ensure that the device is properly validated and tested for the specific application. Additionally, consider using Texas Instruments' safety-critical documentation and support resources.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TVP7002PZP Overview

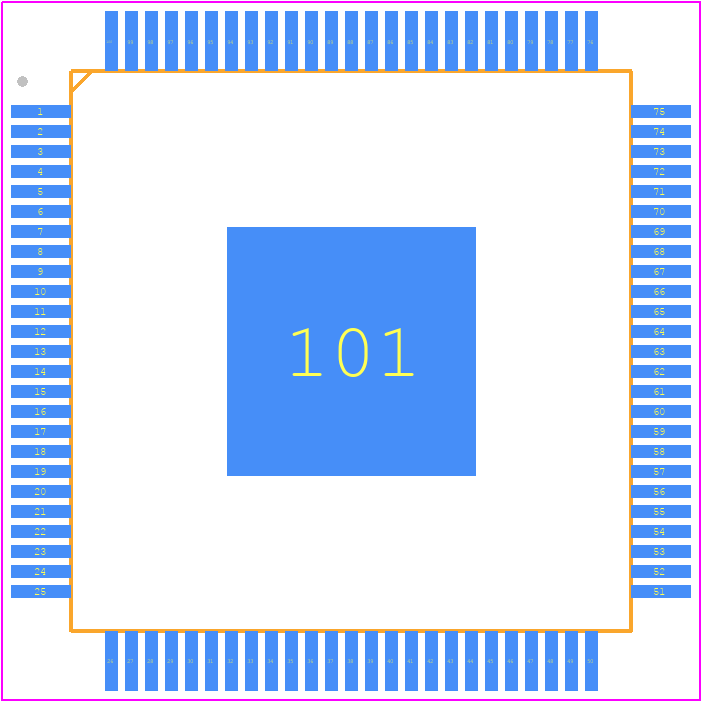

Use the download button to access the TVP7002PZP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TVP70,
or try a keyword search, such as Other Consumer ICs
