A good PCB layout for the TVS1400DRVR involves keeping the device close to the protected component, using short traces, and minimizing the loop area to reduce EMI. A 4-layer PCB with a solid ground plane is recommended. TI provides a reference design and layout guidelines in the datasheet and application notes.
Choose the correct TVS1400DRVR variant by considering the voltage rating, package type, and operating temperature range required for your application. TI provides a product tree and selection guide on their website to help with the selection process.
The TVS1400DRVR can handle surge currents up to 100A (8/20μs waveform) and is designed to meet the IEC 61000-4-5 standard for surge protection. However, the actual surge current handling capability may vary depending on the specific application and PCB layout.
Yes, the TVS1400DRVR can be used for both power and signal line protection. It is designed to protect sensitive electronics from voltage surges and spikes on both power and signal lines. However, the device may require additional external components, such as resistors and capacitors, to optimize its performance for specific applications.
To ensure proper soldering and assembly, follow the recommended soldering profile and handling guidelines provided in the datasheet and application notes. Use a soldering iron with a temperature range of 250°C to 260°C, and avoid applying excessive force or bending the leads during assembly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TVS1400DRVR Overview

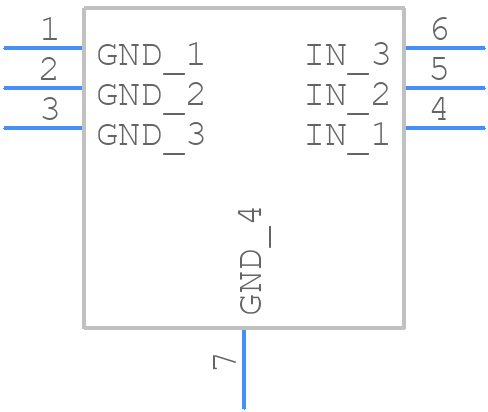

Use the download button to access the TVS1400DRVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TVS14,
or try a keyword search, such as Transient Suppressors
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
