TVS3301DRBR - Texas Instruments

Description: 33 V Bidirectional Flat-Clamp Surge Protection Device

Download TVS3301DRBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

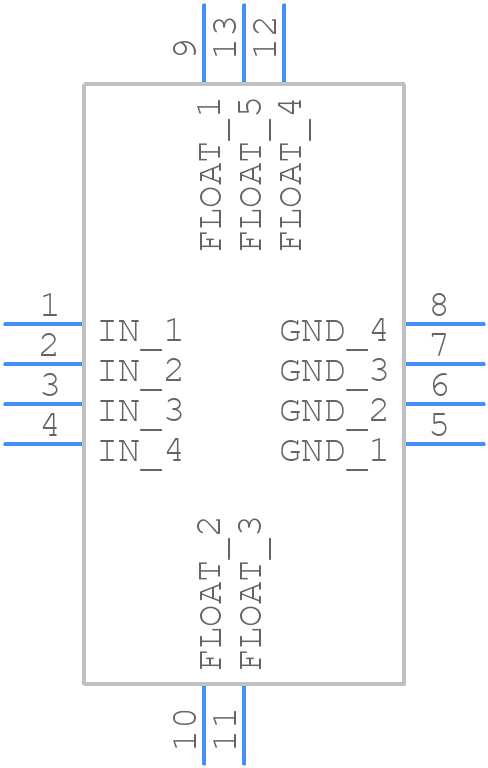

Symbol
TVS3301DRBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TVS3301DRBR - Texas Instruments PCB footprint - Other - Other - DRB0008A_updated
click to zoom
3D Models
TVS3301DRBR - Texas Instruments - 3D model - Other - DRB0008A_updated
click to zoom

TVS3301DRBR Details

  • Manufacturer Part Number:

    TVS3301DRBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2018-12-19

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Breakdown Voltage-Min:

    34.4 V

  • Breakdown Voltage-Nom:

    37.5 V

  • Clamping Voltage-Max:

    40 V

  • Configuration:

    COMPLEX, 1 CHANNEL

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    2

  • Non-rep Peak Rev Power Dis-Max:

    1100 W

  • Number of Elements:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    BIDIRECTIONAL

  • Reference Standard:

    IEC-61000-4-2, 4-4, 4-5; IEC-61643-321

  • Rep Pk Reverse Voltage-Max:

    33 V

  • Reverse Current-Max:

    0.1 µA

  • Reverse Test Voltage:

    33 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

TVS3301DRBR Frequently Asked Questions (FAQs)

  • The TVS3301DRBR can handle surge currents up to 3A, but it's recommended to derate the surge current based on the ambient temperature and the duration of the surge.
  • Choose the correct TVS3301DRBR by considering the voltage rating, power rating, and package type required for your application. Also, ensure that the device can handle the maximum surge current and voltage expected in your system.
  • Yes, the TVS3301DRBR can be used for both AC and DC voltage protection. However, the device's performance may vary depending on the frequency and waveform of the voltage surge.
  • The TVS3301DRBR is designed to handle repetitive surges, but the device's performance may degrade over time. It's essential to consider the surge frequency, duration, and amplitude when designing your protection circuit.
  • Yes, you can use multiple TVS3301DRBR devices in parallel to increase the surge current handling capability. However, ensure that the devices are properly matched and that the layout and thermal management are adequate to prevent thermal runaway.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TVS3301DRBR Overview

Use the download button to access the TVS3301DRBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TVS33, or try a keyword search, such as Transient Suppressors
