TVX1V222MCD - Nichicon

Description: 2200 µF 35 V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C

Download TVX1V222MCD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

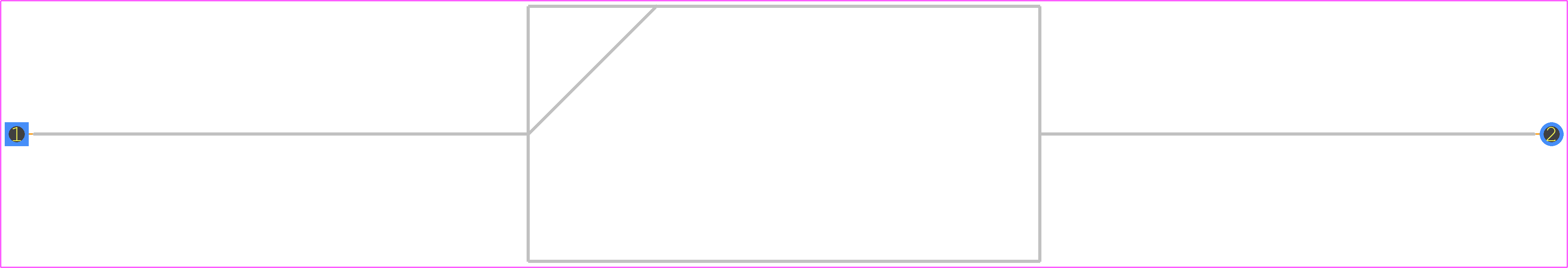

TVX1V222MCD - Nichicon - PCB symbol
click to zoom
PCB Footprints
TVX1V222MCD - Nichicon PCB footprint - Capacitors, Polarized Axial Diameter Horizontal Mounting - Capacitors, Polarized Axial Diameter Horizontal Mounting - 16x31.5
click to zoom
3D Models
TVX1V222MCD - Nichicon - 3D model - Capacitors, Polarized Axial Diameter Horizontal Mounting - 16x31.5
click to zoom
  • Datasheet Download Datasheet
  • Stock & Prices $ Price & Stock for TVX1V222MCD
  • Part Number TVX1V222MCD
  • Manufacturer Nichicon
  • Pin Count 2
  • Part Category Capacitor Polarised
  • Package Category Capacitors, Polarized Axial Diameter Horizontal Mounting
  • Footprint Name Capacitors, Polarized Axial Diameter Horizontal Mounting - 16x31.5
  • Released Date Mar 20, 2024
  • Last Modified Date Jun 25, 2024 8:04 AM UTC
  • Pinout / Pin List Click Here (Member Only)

TVX1V222MCD Details

  • Manufacturer Part Number:

    TVX1V222MCD

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    AXIAL LEADED, ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    0

  • Capacitance:

    2200 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    16 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    2.31 mA

  • Length:

    31.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    TUBULAR PACKAGE

  • Package Style:

    Axial

  • Packing Method:

    Bulk

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    35 V

  • Ripple Current:

    1580 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.16

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Shape:

    WIRE

TVX1V222MCD Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for TVX1V222MCD is 260°C for 3 seconds or less.
  • Yes, TVX1V222MCD is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium.
  • The derating curve for TVX1V222MCD can be obtained from Nichicon Corporation's application notes or by contacting their technical support. Generally, the capacitor's voltage rating decreases as the operating temperature increases.
  • Yes, TVX1V222MCD is suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high resonance frequency.
  • TVX1V222MCD is designed to operate in humid environments, but its performance may degrade if the humidity exceeds 80%. It's recommended to use a humidity-resistant coating or conformal coating to protect the capacitor in high-humidity applications.
