TWL1200ZQCR - Texas Instruments

Description: SDIO, UART, and Audio Voltage-Translation Transceiver

Download TWL1200ZQCR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

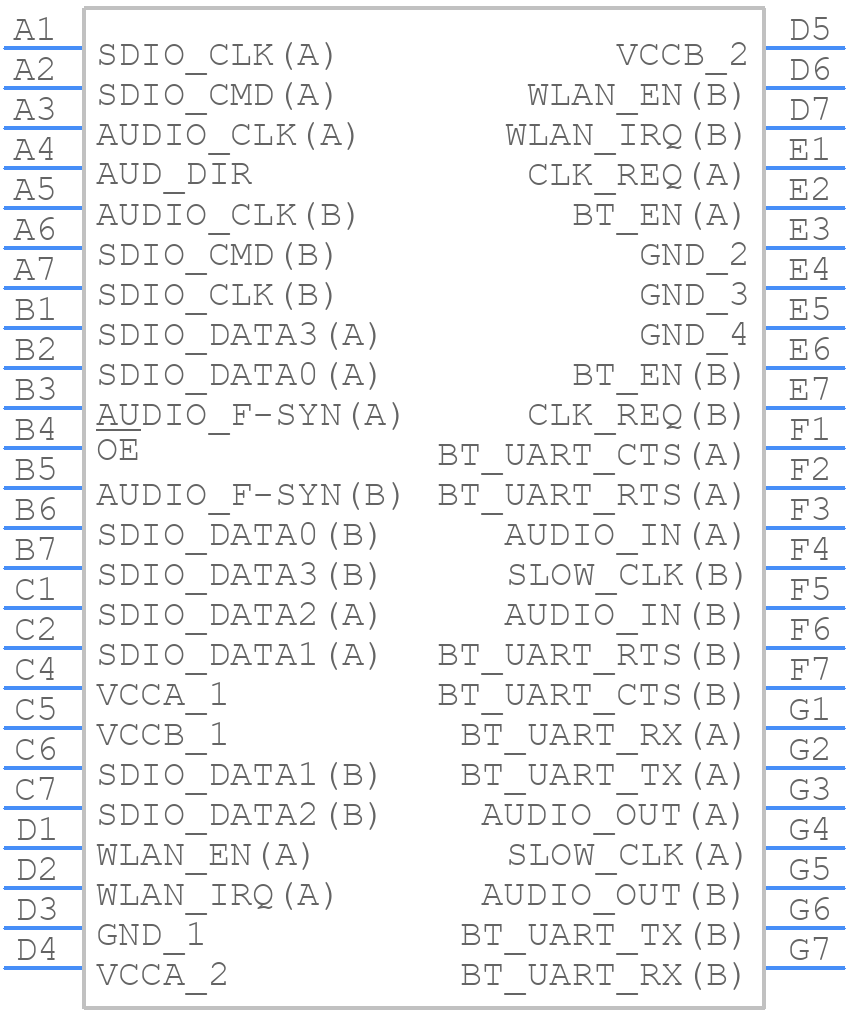

TWL1200ZQCR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TWL1200ZQCR - Texas Instruments PCB footprint - BGA - BGA - ZQC(S-PBGA-N48)
click to zoom
3D Models
TWL1200ZQCR - Texas Instruments - 3D model - BGA - ZQC(S-PBGA-N48)
click to zoom

TWL1200ZQCR Details

  • Manufacturer Part Number:

    TWL1200ZQCR

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    BGA

  • Package Description:

    BGA-48

  • Pin Count:

    48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Differential Output:

    NO

  • Driver Number of Bits:

    1

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    S-PBGA-B48

  • JESD-609 Code:

    e1

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    19

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Low Current-Max:

    0.008 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA48,7X7,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    7 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    0.03 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.1 V

  • Supply Voltage-Nom:

    2.5 V

  • Supply Voltage1-Max:

    3.6 V

  • Supply Voltage1-Min:

    1.1 V

  • Supply Voltage1-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    7 ns

  • Width:

    4 mm

TWL1200ZQCR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the TWL1200ZQCR evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The TWL1200ZQCR can be configured for different charging scenarios using the I2C interface to program the device's registers. The device's datasheet provides a detailed description of the registers and their functions, and the application notes provide examples of how to configure the device for different charging scenarios.
  • The TWL1200ZQCR can deliver up to 1.5A of current, and it has built-in overcurrent protection (OCP) that limits the output current to prevent damage to the device or the battery. The OCP threshold can be programmed using the I2C interface, and the device also has a thermal shutdown feature to prevent overheating.
  • The TWL1200ZQCR has a built-in battery temperature monitoring feature that adjusts the charging current based on the battery temperature. For cold-temperature charging, it is recommended to use a thermistor to monitor the battery temperature and adjust the charging current accordingly. The device's datasheet provides more information on cold-temperature charging and the recommended thermistor values.
  • The TWL1200ZQCR can be used for charging multiple batteries in parallel, but it does not have built-in battery balancing capabilities. Battery balancing requires an external circuit to monitor and balance the state of charge of each battery. Texas Instruments provides application notes and reference designs for battery balancing using the TWL1200ZQCR.
