A good PCB layout for the TXBN0304RSVR involves keeping the input and output traces short and wide, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliability in high-temperature applications, it's essential to follow proper thermal design and management practices. This includes providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device. Additionally, it's recommended to derate the device's power handling capabilities according to the operating temperature.
The TXBN0304RSVR has built-in ESD protection, but it's still important to follow proper ESD handling and storage procedures to prevent damage. This includes using ESD-safe materials, grounding oneself before handling the device, and storing the device in ESD-safe packaging.
To troubleshoot issues with the TXBN0304RSVR, start by checking the device's operating conditions, such as voltage, current, and temperature. Verify that the device is properly soldered and that the PCB layout is correct. Use oscilloscopes and thermal imaging cameras to monitor the device's behavior and identify potential issues. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
When using the TXBN0304RSVR in a high-reliability or safety-critical application, it's essential to follow rigorous design and testing procedures. This includes performing thorough risk assessments, using redundant or fault-tolerant designs, and implementing multiple levels of protection against faults and failures. Additionally, ensure that the device is properly qualified and certified for the specific application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TXBN0304RSVR Overview

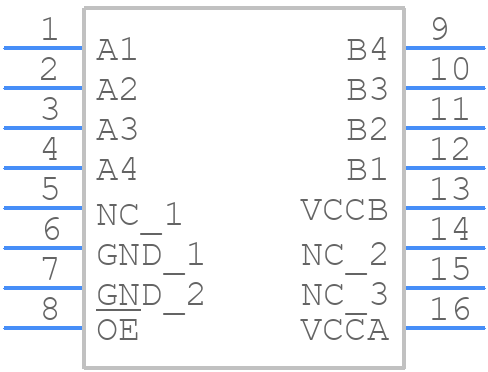

Use the download button to access the TXBN0304RSVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TXBN0,
or try a keyword search, such as Level Translators
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
