TXS0104EQWBQARQ1 - Texas Instruments

Description: Voltage Level Translator Bidirectional 1 Circuit 4 Channel 24Mbps 14-WQFN (3x2.5)

Download TXS0104EQWBQARQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

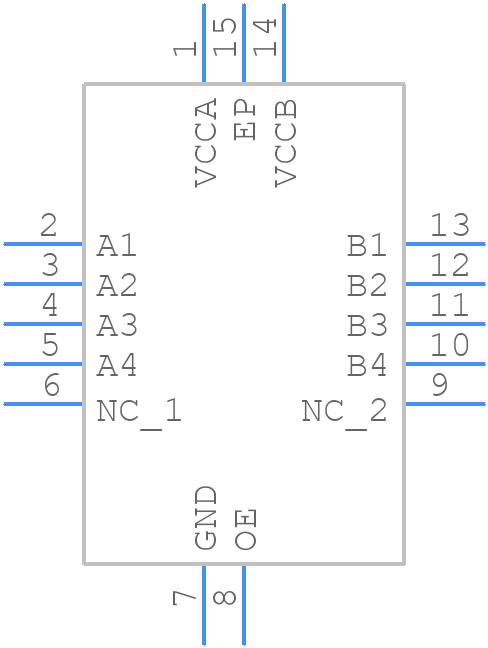

TXS0104EQWBQARQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TXS0104EQWBQARQ1 - Texas Instruments PCB footprint - Other - Other - BQA0014B_2025-2
click to zoom
3D Models
TXS0104EQWBQARQ1 - Texas Instruments - 3D model - Other - BQA0014B_2025-2
click to zoom

TXS0104EQWBQARQ1 Details

  • Manufacturer Part Number:

    TXS0104EQWBQARQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Delay-Max:

    124 ns

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    R-PQCC-N14

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC14,.1X.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    5.5 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.45 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    2.5 mm

TXS0104EQWBQARQ1 Frequently Asked Questions (FAQs)

  • The maximum capacitance that can be driven by the TXS0104EQWBQARQ1 is 50 pF. Exceeding this value may cause signal integrity issues.
  • Yes, the TXS0104EQWBQARQ1 can be used in a voltage translation application where the input voltage is higher than the output voltage, but the input voltage must not exceed the maximum rating of 5.5V.
  • To ensure proper operation, the TXS0104EQWBQARQ1 requires a stable power supply and proper biasing. The VCCA and VCCB pins should be connected to the respective power supply rails, and the GND pin should be connected to the system ground.
  • The TXS0104EQWBQARQ1 can support data rates up to 100 Mbps, making it suitable for high-speed applications such as USB, HDMI, and PCIe.
  • Yes, the TXS0104EQWBQARQ1 is a bidirectional voltage translator, meaning it can translate signals in both directions, from A to B and from B to A.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TXS0104EQWBQARQ1 Overview

Use the download button to access the TXS0104EQWBQARQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TXS01, or try a keyword search, such as Level Translators
