UA723CD - Texas Instruments

Description: 14 Pin 150mA Adjustable Positive Voltage Regulator

Download ECAD Model

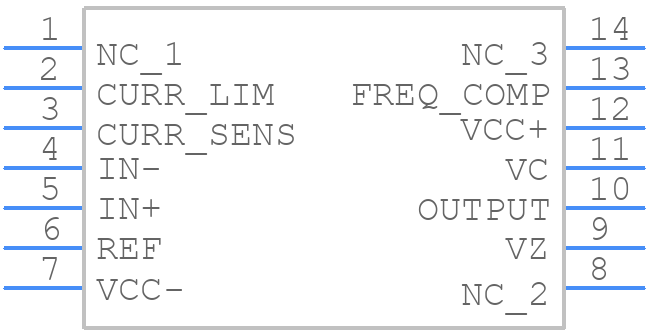

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

UA723CD - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - soic d pakage
click to zoom

3D Models

UA723CD - Texas Instruments  - 3D model - Small Outline Packages - soic d pakage
click to zoom

UA723CD Details

  • Manufacturer Part Number:

    UA723CD

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP,

  • Pin Count:

    14

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • Risk Rank:

    0.88

  • Samacsys Modified On:

    2022-06-16 06:25:43

  • YTEOL:

    15

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    70 °C

  • Output Current-Max:

    0.15 A

  • Output Voltage-Max:

    7.5 V

  • Output Voltage-Min:

    6.8 V

  • Output Voltage-Nom:

    7.15 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Ripple Voltage (Main Out):

    0.00002 Vrms

  • Seated Height-Max:

    1.58 mm

  • Supply Voltage-Max (Vsup):

    40 V

  • Supply Voltage-Min (Vsup):

    9.5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    150 ppm/°C

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    YES

  • Width:

    3.91 mm
