UA9637ACP - Texas Instruments

Description: UA9637ACP, Line Receiver, RS-422, V.11 Dual 10Mbit/s Differential 5 V 8-Pin PDIP

Download UA9637ACP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

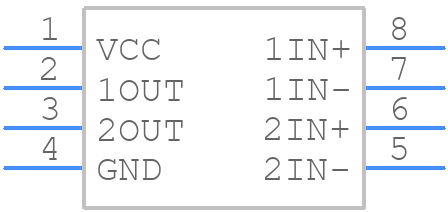

UA9637ACP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
UA9637ACP - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - P (R-PDIP-T8)
click to zoom
3D Models
UA9637ACP - Texas Instruments - 3D model - Dual-In-Line Packages - P (R-PDIP-T8)
click to zoom

UA9637ACP Details

  • Manufacturer Part Number:

    UA9637ACP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    DIP-8

  • Pin Count:

    8

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE RECEIVER

  • Interface Standard:

    EIA-422-B; TIA-422-B; EIA-423-B; TIA-423-B; V.10; V.11

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e4

  • Length:

    9.81 mm

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Out Swing-Min:

    2 V

  • Output Characteristics:

    TOTEM-POLE

  • Output Low Current-Max:

    0.02 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    25 ns

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    5.08 mm

  • Supply Current-Max:

    50 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    5.25 V

  • Supply Voltage1-Min:

    4.75 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

UA9637ACP Frequently Asked Questions (FAQs)

  • A good PCB layout for the UA9637ACP involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure proper biasing, connect the VCC pin to a stable voltage source, and decouple it with a 0.1uF capacitor to ground. The VBIAS pin should be connected to a voltage divider network that sets the desired output voltage. A 1kΩ to 10kΩ resistor is recommended for the voltage divider.
  • The maximum power dissipation of the UA9637ACP is 1.5W. However, it's recommended to keep the power dissipation below 1W to ensure reliable operation and to prevent overheating.
  • Yes, the UA9637ACP can be used in switching power supply designs, but it's essential to ensure that the device is properly bypassed and decoupled to prevent noise and oscillations. A snubber network may be required to reduce ringing and ensure stable operation.
  • To protect the UA9637ACP from overvoltage and overcurrent conditions, use a voltage regulator with overvoltage protection (OVP) and overcurrent protection (OCP) features. Additionally, consider adding a fuse or a polyfuse in series with the input voltage to prevent damage from excessive current.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

UA9637ACP Overview

Use the download button to access the UA9637ACP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UA963, or try a keyword search, such as Line Driver or Receivers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
