UAF42AP-1 - Texas Instruments

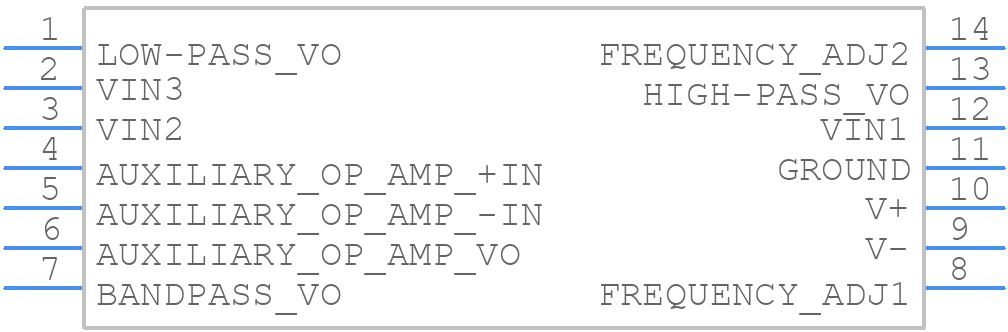

UAF42AP-1 Details

• Manufacturer Part Number:

  UAF42AP-1

• Brand Name:

  Texas Instruments

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DIP

• Package Description:

  PLASTIC, DIP-14

• Pin Count:

  14

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Active Filter Type:

  CONTINUOUS TIME FILTER

• Center or Cutoff Freq Rng-Max:

  100 kHz

• JESD-30 Code:

  R-PDIP-T14

• Length:

  19.305 mm

• Neg Supply Voltage-Max (Vsup):

  -18 V

• Neg Supply Voltage-Min (Vsup):

  -6 V

• Neg Supply Voltage-Nom (Vsup):

  -15 V

• Number of Functions:

  1

• Number of Terminals:

  14

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -25 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Poles and Zeros:

  2 AND 0

• Qualification Status:

  Not Qualified

• Response:

  UNIVERSAL

• Seated Height-Max:

  5.08 mm

• Supply Voltage-Max (Vsup):

  18 V

• Supply Voltage-Min (Vsup):

  6 V

• Supply Voltage-Nom (Vsup):

  15 V

• Surface Mount:

  NO

• Temperature Grade:

  OTHER

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Transfer Characteristics:

  BUTTERWORTH/BESSEL/CHEBYSHEV

• Width:

  7.62 mm
