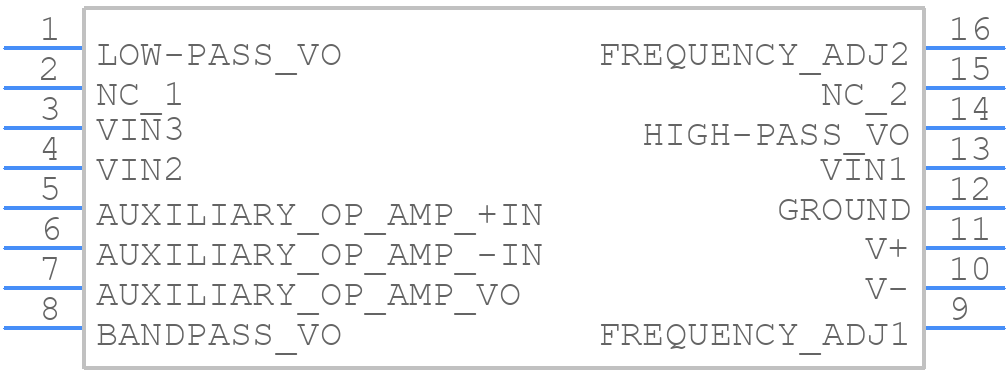

UAF42AUE4 - Texas Instruments

UAF42AUE4 Details

• Manufacturer Part Number:

  UAF42AUE4

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOIC

• Package Description:

  GREEN, PLASTIC, SOIC-16

• Pin Count:

  16

• Country Of Origin:

  Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Active Filter Type:

  CONTINUOUS TIME FILTER

• Center or Cutoff Freq Rng-Max:

  100 kHz

• JESD-30 Code:

  R-PDSO-G16

• JESD-609 Code:

  e4

• Length:

  10.3 mm

• Moisture Sensitivity Level:

  3

• Neg Supply Voltage-Max (Vsup):

  -18 V

• Neg Supply Voltage-Min (Vsup):

  -6 V

• Neg Supply Voltage-Nom (Vsup):

  -15 V

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -25 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP16,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Poles and Zeros:

  2 AND 0

• Qualification Status:

  Not Qualified

• Response:

  UNIVERSAL

• Seated Height-Max:

  2.65 mm

• Supply Current-Max (Isup):

  7 mA

• Supply Voltage-Max (Vsup):

  36 V

• Supply Voltage-Min (Vsup):

  12 V

• Supply Voltage-Nom (Vsup):

  15 V

• Surface Mount:

  YES

• Temperature Grade:

  OTHER

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Transfer Characteristics:

  BUTTERWORTH/BESSEL/CHEBYSHEV

• Width:

  7.5 mm
