A good PCB layout for the UC1825J883B involves keeping the input and output stages separate, using a star-ground configuration, and placing the input filter components close to the IC. Additionally, using a solid ground plane and minimizing trace lengths can help reduce EMI.
The input filter components (R1, C1, and L1) should be chosen based on the input voltage, frequency, and desired attenuation. A good starting point is to use the values recommended in the datasheet, and then adjust them based on the specific application requirements.
The UC1825J883B can deliver up to 1.5A of output current, but this may vary depending on the input voltage, output voltage, and operating frequency. It's essential to check the datasheet and application notes for specific guidance on output current capabilities.
To ensure the UC1825J883B operates within its SOA, monitor the input voltage, output voltage, and output current. Make sure the device is not subjected to excessive voltage, current, or power dissipation. Also, ensure proper thermal management and heat sinking to prevent overheating.
The UC1825J883B is a commercial-grade device, but Texas Instruments offers a radiation-hardened version, the UC1825RH883B, which is designed for high-reliability and aerospace applications. Consult the datasheet and application notes for specific guidance on using the UC1825J883B in high-reliability applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC1825J883B Overview

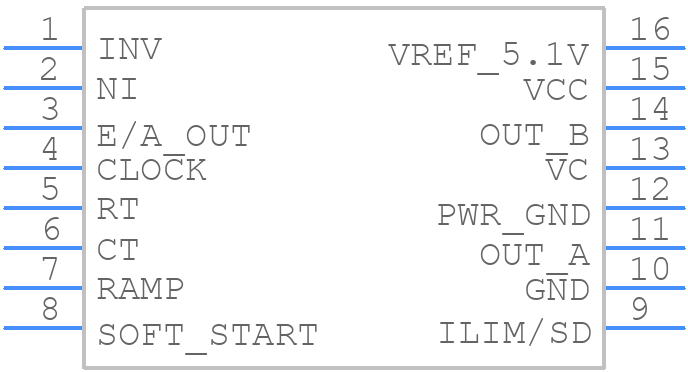

Use the download button to access the UC1825J883B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC182,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
