UNDER AND OVER-VOLTAGE FAULT ALERT WITH PROGRAMMABLE DELAY
Analog IC - Other Type:
ANALOG CIRCUIT
Input Voltage-Max:
40 V
Input Voltage-Min:
4.5 V
JESD-30 Code:
R-GDIP-T14
JESD-609 Code:
e0
Length:
19.56 mm
Number of Channels:
1
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
14
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Output Current-Max:
0.45 A
Output Voltage-Min:
1.98 V
Package Body Material:
CERAMIC, GLASS-SEALED
Package Code:
DIP
Package Equivalence Code:
DIP14,.3
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Qualification Status:
Not Qualified
Seated Height-Max:
5.08 mm
Supply Voltage-Max (Vsup):
36 V
Supply Voltage-Min (Vsup):
4.5 V
Supply Voltage-Nom (Vsup):
15 V
Surface Mount:
NO
Temperature Grade:
MILITARY
Terminal Finish:
Tin/Lead (Sn/Pb)
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Trim/Adjustable Output:
YES
Width:
7.62 mm
UC1832J Frequently Asked Questions (FAQs)
The UC1832J is a high-frequency device, and proper layout and placement are crucial for its operation. TI recommends a 4-layer PCB with a solid ground plane, and the device should be placed close to the input capacitors. The output inductor and diode should be placed close to the device, and the output capacitor should be placed close to the load. A good layout will help reduce EMI and improve efficiency.
The input capacitor should be a low-ESR ceramic capacitor with a voltage rating of at least 1.5 times the input voltage. The output capacitor should be a low-ESR electrolytic capacitor with a voltage rating of at least 1.5 times the output voltage. The capacitance value should be chosen based on the output ripple requirement and the switching frequency. TI recommends using capacitors with a ripple current rating of at least 2 times the output current.
The UC1832J has an operating temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at high temperatures. TI recommends derating the output current and voltage at high temperatures to ensure reliable operation.
To troubleshoot issues with the UC1832J, start by checking the input and output voltage levels, and the switching frequency. Use an oscilloscope to check for oscillations or ringing on the output voltage. Check the layout and placement of the components, and ensure that the input and output capacitors are properly selected. Also, check the output inductor and diode for saturation or overheating. If the issue persists, consult the TI application notes and technical support resources for further guidance.
Yes, the UC1832J can be used in a synchronous rectification configuration. However, this requires additional components, such as a synchronous rectifier FET and a driver IC. TI provides application notes and reference designs for synchronous rectification configurations using the UC1832J.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
UC1832J Overview

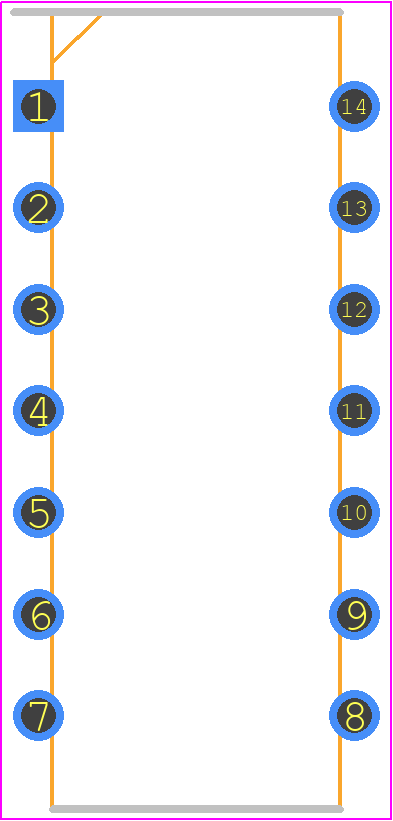

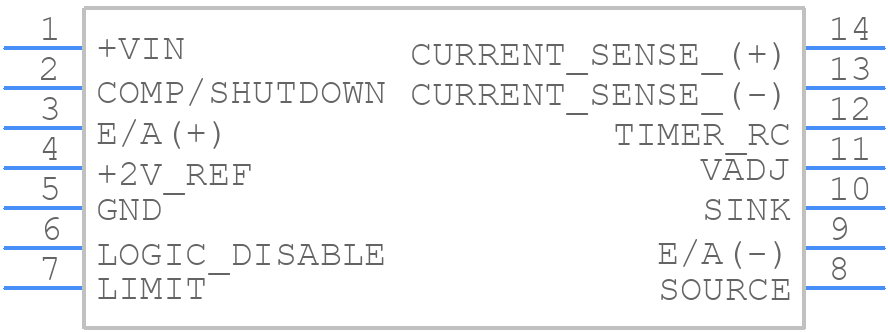

Use the download button to access the UC1832J schematic symbol, PCB footprint, and 3D model.
