Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output traces separate, using a solid ground plane, and minimizing loop areas to reduce EMI.
To ensure the UC1836J883B operates within its SOA, monitor the device's junction temperature, output current, and input voltage. Use thermal management techniques, such as heat sinks or thermal interfaces, to keep the junction temperature below 150°C. Also, ensure the output current is within the recommended range, and the input voltage is within the specified limits.
The maximum allowed voltage drop across the input and output pins is not explicitly stated in the datasheet. However, as a general rule, it's recommended to keep the voltage drop below 1V to ensure reliable operation and minimize power losses.
While the UC1836J883B is a high-performance device, it's not specifically designed for high-reliability or high-temperature applications. For such applications, consider using devices with a higher temperature rating (e.g., up to 175°C) and more stringent reliability requirements, such as those in the automotive or aerospace industries.
To troubleshoot issues with the UC1836J883B, start by verifying the PCB layout, component values, and soldering quality. Check for signs of overheating, such as excessive temperature or thermal shutdown. Use oscilloscopes or other diagnostic tools to analyze the device's behavior and identify the root cause of the issue. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC1836J883B Overview

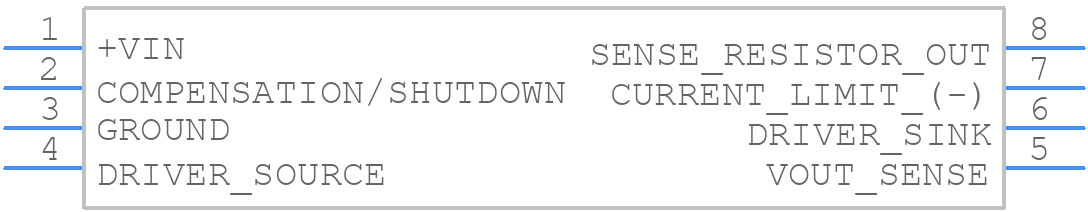

Use the download button to access the UC1836J883B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC183,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
