The UC2543J is a high-frequency device, and proper layout and placement are crucial for its operation. TI recommends placing the device close to the power supply, using short traces, and avoiding vias under the device. A solid ground plane and decoupling capacitors are also essential.
The UC2543J requires a bias voltage of 5V to 15V. Ensure that the bias voltage is stable and within the recommended range. Also, make sure the bias pin is decoupled with a capacitor to prevent noise and oscillations.
The UC2543J can deliver up to 1A of output current. However, the actual output current depends on the input voltage, output voltage, and the load impedance. It's essential to check the datasheet and perform thermal calculations to ensure the device operates within its safe operating area.
Oscillations or instability issues can be caused by poor layout, inadequate decoupling, or incorrect biasing. Check the layout and ensure that the device is properly decoupled. Verify that the bias voltage is stable and within the recommended range. Also, check for any noise or interference on the input or output lines.
Yes, the UC2543J can be used in switching regulator applications. However, it's essential to ensure that the device is properly biased and that the output voltage is within the recommended range. Also, consider the device's power dissipation and thermal characteristics when designing the regulator.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC2543J Overview

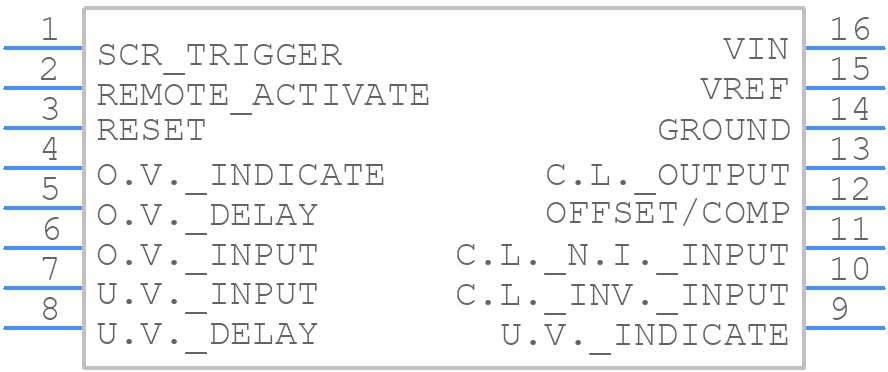

Use the download button to access the UC2543J schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC254,
or try a keyword search, such as Power Management Circuits
