The UC2544DW requires careful PCB design and layout to ensure proper operation. TI recommends a 4-layer PCB with a solid ground plane, and to keep the input and output traces short and separate. Additionally, decoupling capacitors should be placed close to the device, and the layout should minimize electromagnetic interference (EMI).
The output filter components (L and C) should be chosen based on the desired output voltage ripple, output current, and switching frequency. TI provides a filter design tool and application notes to help with component selection. The filter components should also be rated for the maximum output current and voltage.
The maximum ambient temperature for the UC2544DW is 85°C. As the ambient temperature increases, the device's performance may degrade, and the output voltage may drop. TI recommends derating the output current and voltage at higher temperatures to ensure reliable operation.
The UC2544DW does not have built-in OVP and UVP. However, these features can be implemented using external components, such as zener diodes, resistors, and comparators. TI provides application notes and design examples for implementing OVP and UVP circuits.
The recommended input capacitor type is a low-ESR ceramic capacitor, such as X5R or X7R, with a value of 10uF to 22uF. The input capacitor should be rated for the maximum input voltage and should be placed close to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC2544DW Overview

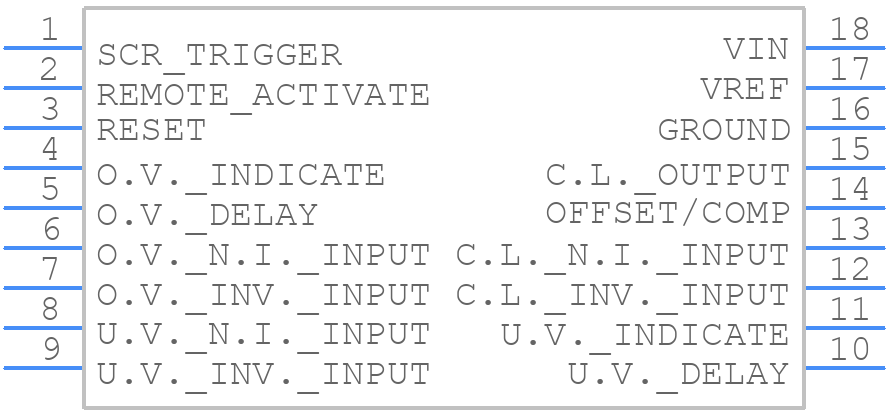

Use the download button to access the UC2544DW schematic symbol, PCB footprint, and 3D model.
