Texas Instruments recommends a compact layout with the UC2573D placed close to the power source, and using a solid ground plane to reduce EMI. Additionally, it's recommended to use a shielded cable for the output and to keep the input and output traces separate to minimize noise coupling.
To ensure the UC2573D operates within its SOA, it's essential to monitor the input voltage, output current, and temperature during startup and fault conditions. Implementing overvoltage protection, undervoltage lockout, and overcurrent protection can help prevent damage to the device. Additionally, using a thermistor or thermal sensor to monitor the device temperature can help prevent overheating.
Using a bootstrap capacitor value that is too low can result in reduced output voltage and efficiency, while a value that is too high can increase the risk of overvoltage stress on the device. The optimal bootstrap capacitor value can be calculated based on the output voltage, switching frequency, and desired ripple voltage. Texas Instruments provides a calculation method in the application note SLUA271A.
To troubleshoot issues with the UC2573D, start by verifying the input voltage, output voltage, and current waveforms using an oscilloscope. Check for signs of oscillation, ringing, or instability, and ensure that the device is operating within its recommended operating conditions. Consult the datasheet and application notes for guidance on troubleshooting common issues, and consider using simulation tools such as SPICE or PSpice to model and analyze the circuit.
The UC2573D has a maximum junction temperature rating of 150°C. To ensure reliable operation in high-temperature environments, it's essential to provide adequate heat sinking, such as using a heat sink or thermal pad, and to ensure good airflow around the device. Additionally, consider using a thermistor or thermal sensor to monitor the device temperature and implement thermal shutdown or warning mechanisms to prevent overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC2573D Overview

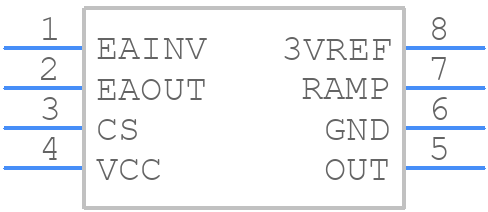

Use the download button to access the UC2573D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC257,
or try a keyword search, such as Switching Regulator or Controllers
