Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output traces separate, using a solid ground plane, and minimizing loop areas to reduce EMI.
To ensure reliable startup and shutdown, make sure to follow the recommended startup and shutdown sequences, and provide a stable input voltage. Also, ensure that the input capacitor is properly sized and placed close to the IC.
The UC2637DWTR can deliver up to 3.5A of output current, but this is dependent on the input voltage, output voltage, and thermal conditions. Be sure to check the datasheet for specific current ratings and thermal derating curves.
To minimize standby power consumption, ensure that the enable pin is properly driven, and consider using a low-dropout linear regulator or a low-power voltage reference. Additionally, optimize the input capacitor selection and reduce the input voltage to the minimum required level.
Thermal management is critical for the UC2637DWTR. Ensure good airflow, use a heat sink if necessary, and follow the recommended thermal pad layout. Also, consider the thermal resistance of the PCB and the IC package when designing the system.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC2637DWTR Overview

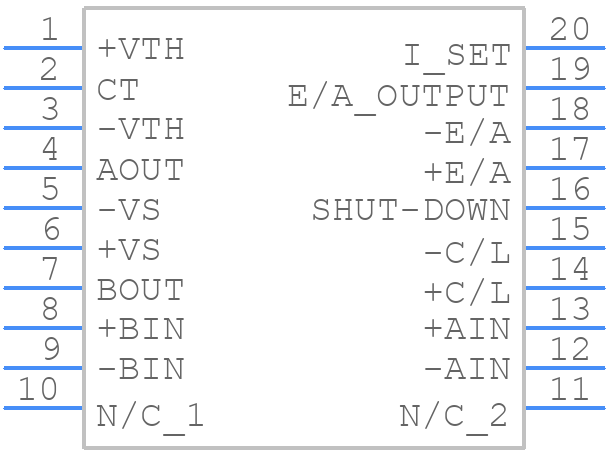

Use the download button to access the UC2637DWTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC263,
or try a keyword search, such as Motion Control Electronics
