Texas Instruments provides a recommended PCB layout in the application note SLUA271, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The UC2637Q datasheet provides guidelines for transformer selection, including the recommended turns ratio, inductance, and core material. Additionally, Texas Instruments offers a transformer design tool, the Power Stage Designer, which can help engineers design and select the optimal transformer for their application.
The UC2637Q is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the thermal management system used. Engineers should consult the datasheet and application notes for guidance on thermal design and derating.
The UC2637Q has a built-in overcurrent protection feature, but it requires an external sense resistor and a voltage supervisor to implement. Engineers can refer to the application note SLUA272 for a detailed example of how to implement overcurrent protection using the UC2637Q.
The UC2637Q datasheet recommends using a low-ESR ceramic or film capacitor with a value of 10uF to 22uF for the input capacitor. The specific value and type of capacitor depend on the input voltage, output voltage, and switching frequency of the application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC2637Q Overview

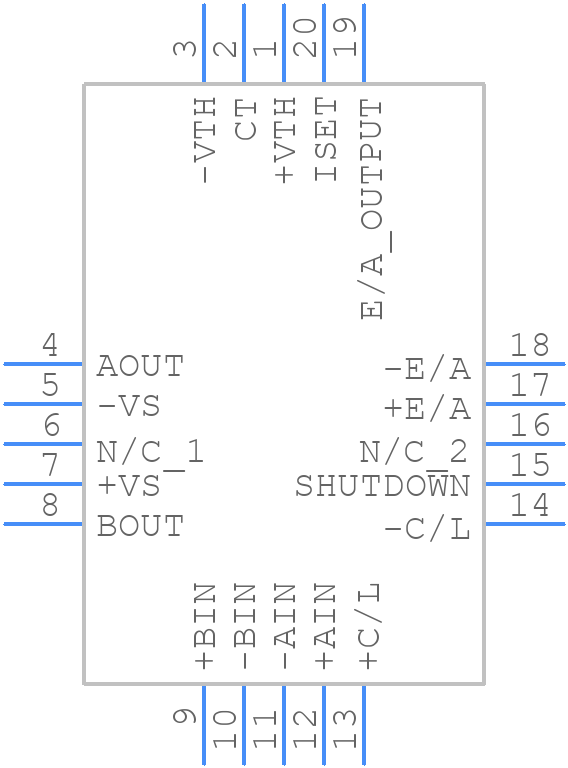

Use the download button to access the UC2637Q schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like UC263,
or try a keyword search, such as Motion Control Electronics
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
