UC2708N - Texas Instruments

Description: Texas Instruments UC2708N, Dual MOSFET Power Driver 3A, 5 → 35 V, Non-Inverting, 8-Pin PDIP

Download UC2708N Model

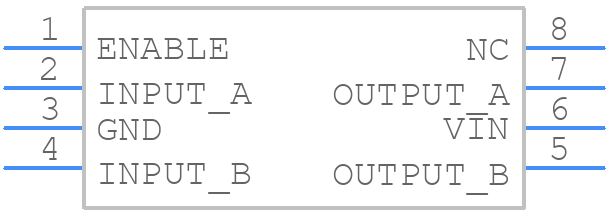

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
UC2708N - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - P (R-PDIP-T8)
click to zoom
3D Models
UC2708N - Texas Instruments  - 3D model - Dual-In-Line Packages - P (R-PDIP-T8)
click to zoom

UC2708N Details

  • Manufacturer Part Number:

    UC2708N

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Pin Count:

    8

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • High Side Driver:

    NO

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e4

  • Length:

    9.81 mm

  • Number of Channels:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    TOTEM-POLE

  • Output Current-Max:

    3 A

  • Output Peak Current Limit-Nom:

    3 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Current-Max:

    26 mA

  • Supply Voltage-Max:

    35 V

  • Supply Voltage-Min:

    5 V

  • Supply Voltage-Nom:

    20 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.055 µs

  • Turn-on Time:

    0.075 µs

  • Width:

    7.62 mm

UC2708N Frequently Asked Questions (FAQs)

  • The UC2708N is a high-frequency device, and proper PCB layout and design are crucial for its operation. TI recommends using a 4-layer PCB with a solid ground plane, and keeping the input and output traces as short as possible. Additionally, decoupling capacitors should be placed close to the device, and the power supply lines should be routed away from the signal lines.
  • The UC2708N requires a specific biasing scheme to operate correctly. TI recommends using a resistive divider network to set the output voltage, and ensuring that the input voltage is within the recommended range. Additionally, the device requires a minimum load current to maintain regulation, and the output capacitor should be selected based on the specific application requirements.
  • The UC2708N has a maximum junction temperature of 150°C, and it's essential to ensure that the device doesn't exceed this temperature. TI recommends using a heat sink or thermal pad to dissipate heat, and ensuring good airflow around the device. Additionally, the device should be operated within the recommended power dissipation limits, and the PCB should be designed to minimize thermal resistance.
  • Troubleshooting issues with the UC2708N requires a systematic approach. TI recommends checking the PCB layout and design for any errors or omissions, ensuring that the device is properly biased and configured, and verifying that the input and output voltages are within the recommended ranges. Additionally, using an oscilloscope to monitor the output voltage and current can help identify any issues, and TI provides a troubleshooting guide in the datasheet.
  • The UC2708N is a high-frequency device, and it's essential to ensure that it meets EMI/EMC regulatory requirements. TI recommends using a shielded enclosure, keeping the PCB layout and design as compact as possible, and using EMI filters or shielding on the input and output lines. Additionally, the device should be operated within the recommended frequency range, and the output voltage should be filtered to minimize EMI emissions.
