The recommended operating voltage range for the UC2710N is 10V to 30V, although it can operate up to 40V with reduced performance.
To ensure proper biasing for high-frequency operation, it's essential to follow the recommended biasing circuit and component values, as shown in the datasheet. Additionally, ensure that the input and output capacitors are of high quality and have low equivalent series resistance (ESR).
The UC2710N can deliver up to 1A of output current, but this is dependent on the input voltage, output voltage, and duty cycle. It's essential to check the datasheet's output characteristics and thermal derating curves to ensure the device can handle the required output current.
To minimize EMI, follow good PCB design practices, such as using a solid ground plane, keeping the switching node (pin 3) as short as possible, and using a shielded inductor. Additionally, consider adding EMI filters or shielding to the circuit.
The internal 5V regulator is used to power the device's internal circuitry and can also be used to power external circuitry. To use the internal regulator, connect the VCC pin to the input voltage and the VREF pin to the desired 5V output. Ensure the input voltage is within the recommended range, and the output current does not exceed 10mA.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC2710N Overview

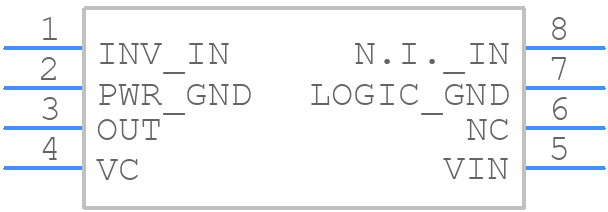

Use the download button to access the UC2710N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC271,
or try a keyword search, such as MOSFET Drivers
