UC3710NG4 - Texas Instruments

Description: TEXAS INSTRUMENTS - UC3710NG4 . - MOSFET IC, 4.7V-18V Supply, 6A Out, 30ns Delay, DIP-8

Download UC3710NG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

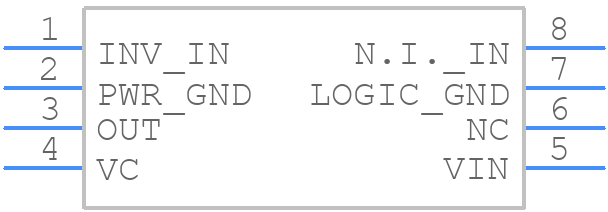

Symbol
UC3710NG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
UC3710NG4 - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - P (R-PDIP-T8)
click to zoom
3D Models
UC3710NG4 - Texas Instruments - 3D model - Dual-In-Line Packages - P (R-PDIP-T8)
click to zoom

UC3710NG4 Details

  • Manufacturer Part Number:

    UC3710NG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Pin Count:

    8

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • High Side Driver:

    NO

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e4

  • Length:

    9.78 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Characteristics:

    TOTEM-POLE

  • Output Current-Max:

    6 A

  • Output Peak Current Limit-Nom:

    0.5 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max:

    35 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    4.7 V

  • Supply Voltage-Nom:

    15 V

  • Supply Voltage1-Max:

    18 V

  • Supply Voltage1-Min:

    4.7 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.08 µs

  • Turn-on Time:

    0.07 µs

  • Width:

    7.62 mm

UC3710NG4 Frequently Asked Questions (FAQs)

  • The UC3710NG4 requires careful layout and placement to ensure proper operation. TI recommends placing the IC near the input capacitors, using a star-ground configuration, and keeping the high-current paths short and wide. A 4-layer PCB with a solid ground plane is also recommended.
  • Choose input capacitors with low ESR, high ripple current rating, and a voltage rating that exceeds the maximum input voltage. X7R or X5R ceramic capacitors are recommended. The capacitor value should be at least 10uF, but larger values may be needed for high-input-voltage applications.
  • The bootstrap capacitor (CBOOT) is used to generate the gate drive voltage for the high-side FET. It should be a low-ESR, high-frequency capacitor (e.g., 1nF to 10nF) with a voltage rating that exceeds the maximum input voltage.
  • The output voltage is set by the resistive divider network (R1, R2) connected to the FB pin. The output voltage can be calculated using the formula: VOUT = 2.5V x (1 + R2/R1). Choose R1 and R2 values to achieve the desired output voltage.
  • The UC3710NG4 can deliver up to 10A of output current, but this depends on the input voltage, output voltage, and thermal design. Ensure proper thermal management and follow TI's guidelines for output current derating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

UC3710NG4 Overview

Use the download button to access the UC3710NG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC371, or try a keyword search, such as MOSFET Drivers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
