UC28023DWR - Texas Instruments

Description: Economy High Speed PWM Controllers

Download UC28023DWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

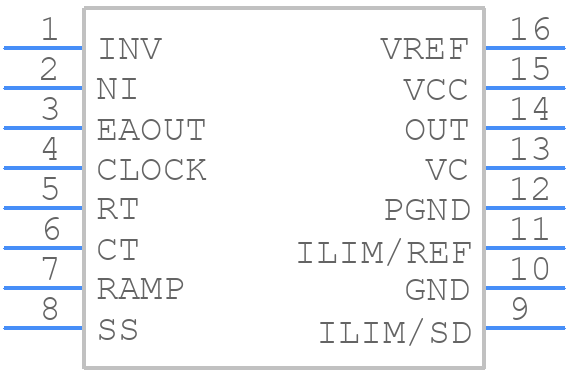

UC28023DWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
UC28023DWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW (R-PDSO-G16)
click to zoom
3D Models
UC28023DWR - Texas Instruments - 3D model - Small Outline Packages - DW (R-PDSO-G16)
click to zoom

UC28023DWR Details

  • Manufacturer Part Number:

    UC28023DWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    CAN ALSO BE CONFIGURED IN PEAK CURRENT OR AVERAGE CURRENT MODE
