UC2827DW-2 - Texas Instruments

Description: Texas Instruments UC2827DW-2, PWM Current Mode Controller, Triple 250 mA, 500 kHz 24-Pin SOIC

Download UC2827DW-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

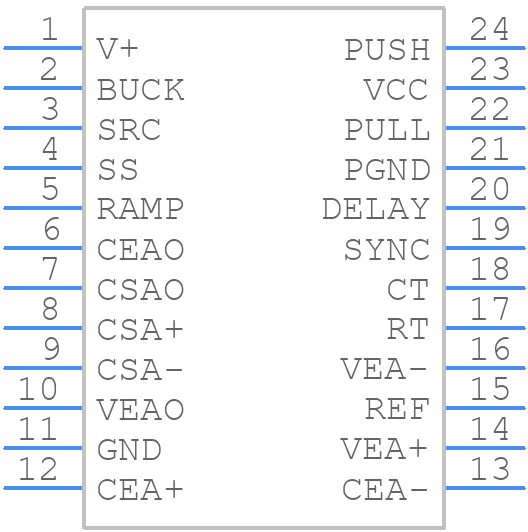

UC2827DW-2 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW (R-PDSO-G24)
click to zoom
3D Models
UC2827DW-2 - Texas Instruments  - 3D model - Small Outline Packages - DW (R-PDSO-G24)
click to zoom

UC2827DW-2 Details

  • Manufacturer Part Number:

    UC2827DW-2

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Pin Count:

    24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    CAN ALSO WORK IN CURRENT MODE

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    20 V

  • Input Voltage-Min:

    9.5 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    15.4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max (Isup):

    1 mA

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Min (Vsup):

    8.8 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    PUSH-PULL

  • Switching Frequency-Max:

    500 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

UC2827DW-2 Frequently Asked Questions (FAQs)

  • The UC2827DW-2 is a high-frequency device, and proper layout and placement are crucial for its operation. TI recommends a 4-layer PCB with a solid ground plane, and the device should be placed close to the input capacitors. The output inductor and diode should be placed close to the device as well. A good rule of thumb is to keep the high-frequency nodes (e.g., the switch node) as short as possible and away from sensitive nodes (e.g., the feedback node).
  • The input capacitor should be a low-ESR, high-frequency capacitor (e.g., ceramic or film capacitor) with a value between 1-10uF. The output capacitor should be a low-ESR, high-frequency capacitor with a value between 10-100uF. The capacitor values and types will depend on the specific application requirements, such as input voltage, output voltage, and output current.
  • The maximum junction temperature for the UC2827DW-2 is 150°C. However, it's recommended to keep the junction temperature below 125°C for reliable operation and to ensure a long lifespan for the device.
  • Oscillations or instability issues with the UC2827DW-2 can be caused by a variety of factors, including poor layout, inadequate decoupling, or incorrect component values. To troubleshoot, start by checking the layout and ensuring that the device is properly decoupled. Verify that the input and output capacitors are properly selected and placed. Check the feedback loop and ensure that it's properly compensated. If the issue persists, try adding a small capacitor (e.g., 10nF) between the feedback pin and ground to improve stability.
  • Yes, the UC2827DW-2 can be used in a synchronous rectification configuration. However, this will require additional components, such as a synchronous rectifier controller and a power MOSFET. The UC2827DW-2 will need to be configured to drive the synchronous rectifier, and the feedback loop will need to be adjusted to ensure proper regulation.
