The UC2842ADWTR is a high-frequency switching regulator, and as such, it requires careful PCB design and layout to minimize noise, EMI, and parasitic inductance. TI recommends using a 4-layer PCB with a solid ground plane, separating the high-current and high-frequency nodes, and using short, wide traces for the power lines. Additionally, it's essential to follow the recommended component placement and orientation to minimize radiation and noise coupling.
The choice of inductor and capacitor values depends on the specific requirements of your application, such as output voltage, current, and frequency. TI provides a detailed application note (SLUA271) that guides you through the selection process. You can also use online tools, such as TI's Power Stage Designer or Webench, to help you select the optimal components for your design.
The UC2842ADWTR is rated for operation from -40°C to 125°C ambient temperature. However, the device's performance may degrade at higher temperatures, affecting its switching frequency, output voltage regulation, and efficiency. It's essential to consider the thermal design and heat dissipation in your application to ensure reliable operation within the specified temperature range.
The UC2842ADWTR requires a proper bias voltage and configuration to operate correctly. TI recommends following the application note (SLUA271) and the datasheet to ensure the correct bias voltage, compensation network, and feedback loop configuration. Additionally, you can use TI's TINA-TI SPICE simulator to model and simulate your design before building the prototype.
Common pitfalls to avoid when designing with the UC2842ADWTR include incorrect component selection, poor PCB layout, inadequate heat dissipation, and insufficient decoupling. Additionally, failing to follow the recommended application notes and datasheet guidelines can lead to suboptimal performance, instability, or even device damage. It's essential to carefully review the documentation and follow best design practices to ensure a successful design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC2842ADWTR Overview

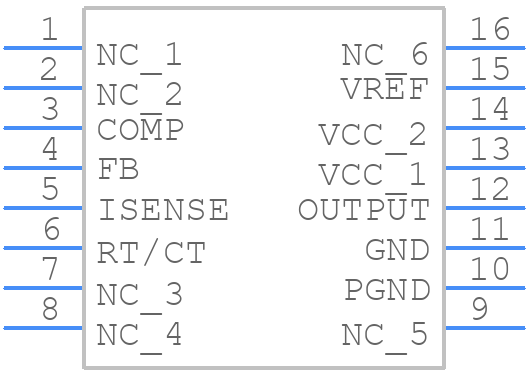

Use the download button to access the UC2842ADWTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC284,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
