The UC2845ADW is a high-frequency switching regulator, and proper PCB layout is crucial for its operation. TI recommends a 4-layer PCB with a solid ground plane, and the use of vias to connect the top and bottom layers. The input and output capacitors should be placed close to the IC, and the switching node (pin 5) should be kept as short as possible. A good layout will help reduce EMI and improve the regulator's performance.
Choosing the right inductor for the UC2845ADW involves considering factors such as inductance value, current rating, and core material. TI recommends using an inductor with an inductance value between 10uH and 100uH, and a current rating that exceeds the maximum output current of the regulator. The core material should be chosen based on the operating frequency and the desired level of core loss. TI also provides an inductor selection guide in the datasheet.
The UC2845ADW has an absolute maximum input voltage rating of 18V, but the recommended maximum input voltage is 15V. Exceeding the recommended input voltage can reduce the regulator's reliability and lifespan. It's also important to ensure that the input voltage is within the specified range during startup and shutdown to prevent damage to the IC.
The UC2845ADW requires compensation to ensure stability. TI recommends using a Type II compensation network, which consists of a resistor, a capacitor, and an optional zero-pin. The compensation values can be calculated using TI's online compensation tool or by following the guidelines in the datasheet. Proper compensation is critical to ensure that the regulator operates within the desired specifications.
The bootstrap capacitor (CBOOT) is used to generate the gate drive voltage for the internal power MOSFET. It's connected between the VCC pin and the BOOT pin, and is charged through an internal diode. The bootstrap capacitor should be chosen based on the operating frequency and the desired level of gate drive voltage. A larger capacitor value can provide a higher gate drive voltage, but may also increase the startup time.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC2845ADW Overview

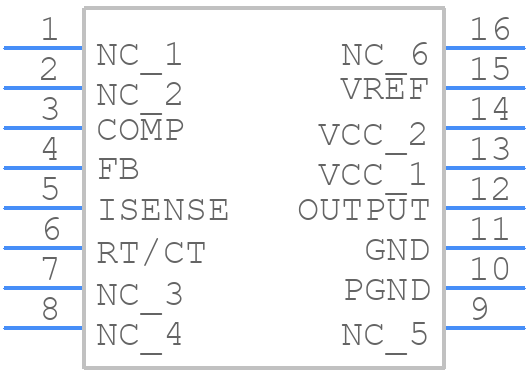

Use the download button to access the UC2845ADW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC284,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
