The UC2843NG4 is a high-frequency switching regulator, and proper PCB layout is crucial for its operation. TI recommends a 4-layer PCB with a solid ground plane, and the use of vias to connect the top and bottom layers. The input and output capacitors should be placed close to the IC, and the switching node should be kept as short as possible. Additionally, a snubber network can be added to reduce EMI.
The choice of inductor depends on the output current, switching frequency, and desired ripple current. TI recommends using an inductor with a high saturation current, low DC resistance, and a shielded construction to reduce EMI. The inductor value can be calculated using the formula: L = (Vin - Vout) / (f_sw * ΔI), where Vin is the input voltage, Vout is the output voltage, f_sw is the switching frequency, and ΔI is the desired ripple current.
The maximum junction temperature of the UC2843NG4 is 150°C. To ensure it doesn't exceed this temperature, TI recommends using a heat sink with a thermal resistance of less than 10°C/W, and keeping the ambient temperature below 85°C. Additionally, the IC should be mounted on a PCB with a good thermal conductivity, and the power dissipation should be calculated using the formula: P_diss = (I_out * V_out) / η, where I_out is the output current, V_out is the output voltage, and η is the efficiency of the converter.
Common issues with the UC2843NG4 can be troubleshooted by checking the input and output voltages, the switching frequency, and the current sense resistor. Oscillations can be caused by a poorly designed PCB layout, inadequate decoupling, or a faulty inductor. Instability can be caused by a low output capacitance, a high output impedance, or a faulty feedback network. TI recommends using an oscilloscope to measure the waveforms and identify the root cause of the issue.
Yes, the UC2843NG4 can be used in a synchronous rectification topology, which can improve the efficiency of the converter. In this topology, the rectifier diode is replaced with a MOSFET, which can reduce the power loss and increase the efficiency. The benefits of synchronous rectification include higher efficiency, lower heat generation, and faster transient response. However, it requires a more complex design and a higher component count.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC2843NG4 Overview

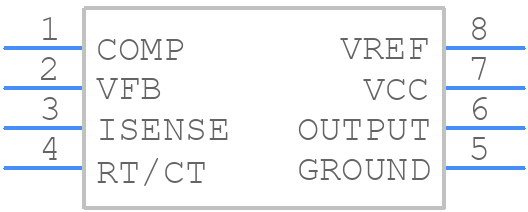

Use the download button to access the UC2843NG4 schematic symbol, PCB footprint, and 3D model.
