The UC2865N is a high-frequency switching regulator, and proper layout and placement are crucial for its operation. TI recommends a 4-layer PCB with a solid ground plane, and the IC should be placed close to the input capacitors. The output inductor and diode should be placed close to the IC, and the output capacitors should be placed close to the load. A good rule of thumb is to keep the high-current paths short and wide, and to minimize the loop area of the switching node.
Choosing the right inductor for the UC2865N involves considering factors such as inductance value, current rating, and core material. A good starting point is to use the inductor selection guide provided in the datasheet. The inductor should be able to handle the peak current of the converter, and its inductance value should be chosen to achieve the desired output voltage ripple. TI also recommends using a shielded inductor to minimize EMI.
The UC2865N has an absolute maximum input voltage rating of 18V, but the recommended maximum input voltage is 15V. Exceeding the recommended maximum input voltage can reduce the reliability and lifespan of the device. It's also important to ensure that the input voltage is within the specified range during startup and shutdown to prevent damage to the device.
The UC2865N requires compensation to ensure stability and prevent oscillations. TI recommends using a Type II compensation network, which consists of a resistor, capacitor, and zero-pin. The compensation network should be designed to provide a phase margin of at least 45 degrees and a gain margin of at least 10 dB. The datasheet provides a detailed compensation design procedure and examples.
The bootstrap capacitor is used to generate the gate drive voltage for the high-side MOSFET. It's charged through the bootstrap diode during the off-time of the high-side MOSFET, and it provides the necessary voltage to turn on the MOSFET during the on-time. The bootstrap capacitor should be chosen to have a high capacitance value and a low equivalent series resistance (ESR) to ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC2865N Overview

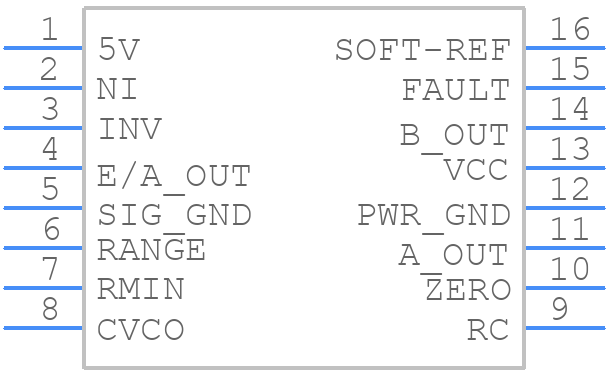

Use the download button to access the UC2865N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC286,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
