UC2903N - Texas Instruments

Description: Texas Instruments UC2903N, Quad-Channel Voltage Supervisor 18-Pin, PDIP

Download UC2903N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

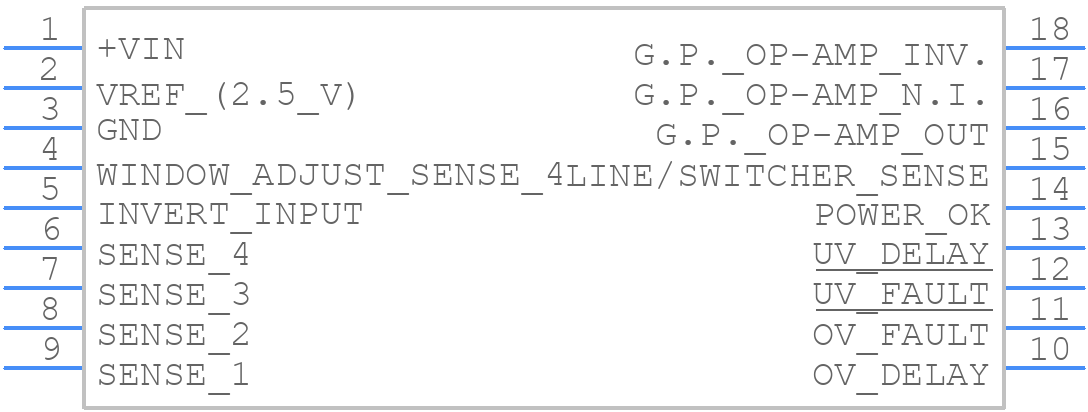

UC2903N - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
UC2903N - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N (R-PDIP-T)
click to zoom
3D Models
UC2903N - Texas Instruments - 3D model - Dual-In-Line Packages - N (R-PDIP-T)
click to zoom

UC2903N Details

  • Manufacturer Part Number:

    UC2903N

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    GREEN, PLASTIC, DIP-18

  • Pin Count:

    18

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDIP-T18

  • JESD-609 Code:

    e4

  • Length:

    22.48 mm

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP18,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Current-Max (Isup):

    15 mA

  • Supply Voltage-Max (Vsup):

    40 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

UC2903N Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a compact layout with the UC2903N placed close to the power source, and using a ground plane to reduce EMI. Additionally, it's recommended to keep the input and output traces separate and use a common mode choke to filter out noise.
  • To ensure the UC2903N operates within its SOA, it's recommended to use a soft-start circuit to limit the inrush current during startup, and to use a voltage supervisor to monitor the input voltage and prevent the device from operating outside its specified range during shutdown.
  • Texas Instruments recommends using a low-ESR ceramic capacitor with a value of 10uF to 22uF for the input capacitor, depending on the specific application and input voltage range.
  • To troubleshoot oscillations or instability issues, check the layout and placement of the device, ensure the input and output capacitors are properly sized and placed, and verify that the feedback loop is properly compensated. Additionally, check for any signs of overheating or excessive current draw.
  • The UC2903N is rated for operation from -40°C to 85°C, but it's recommended to derate the device's performance and ensure proper thermal management to prevent overheating above 70°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

UC2903N Overview

Use the download button to access the UC2903N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC290, or try a keyword search, such as Power Management Circuits
