The UC2906Q is a high-frequency device, and proper layout and placement are crucial for its operation. TI recommends placing the device close to the power source, using short traces, and minimizing loop areas to reduce EMI. A 4-layer PCB with a solid ground plane is also recommended.
To ensure stability, make sure to follow the recommended component values and layout guidelines. Additionally, add a 10nF to 100nF capacitor between the VCC and GND pins to filter out noise. If oscillations still occur, try adding a 1kΩ to 10kΩ resistor in series with the output capacitor.
The UC2906Q can deliver up to 1A of output current, but this is dependent on the input voltage, output voltage, and thermal conditions. Be sure to check the thermal derating curves in the datasheet to ensure the device can handle the required output current.
The UC2906Q is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. Be sure to check the thermal derating curves and consider using a heat sink or thermal management system to keep the device within its recommended operating temperature range.
Start by checking the input voltage, output voltage, and current. Verify that the device is properly connected and that the layout follows the recommended guidelines. Use an oscilloscope to check for oscillations or noise on the output. If issues persist, consult the TI support forums or contact a TI representative for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC2906Q Overview

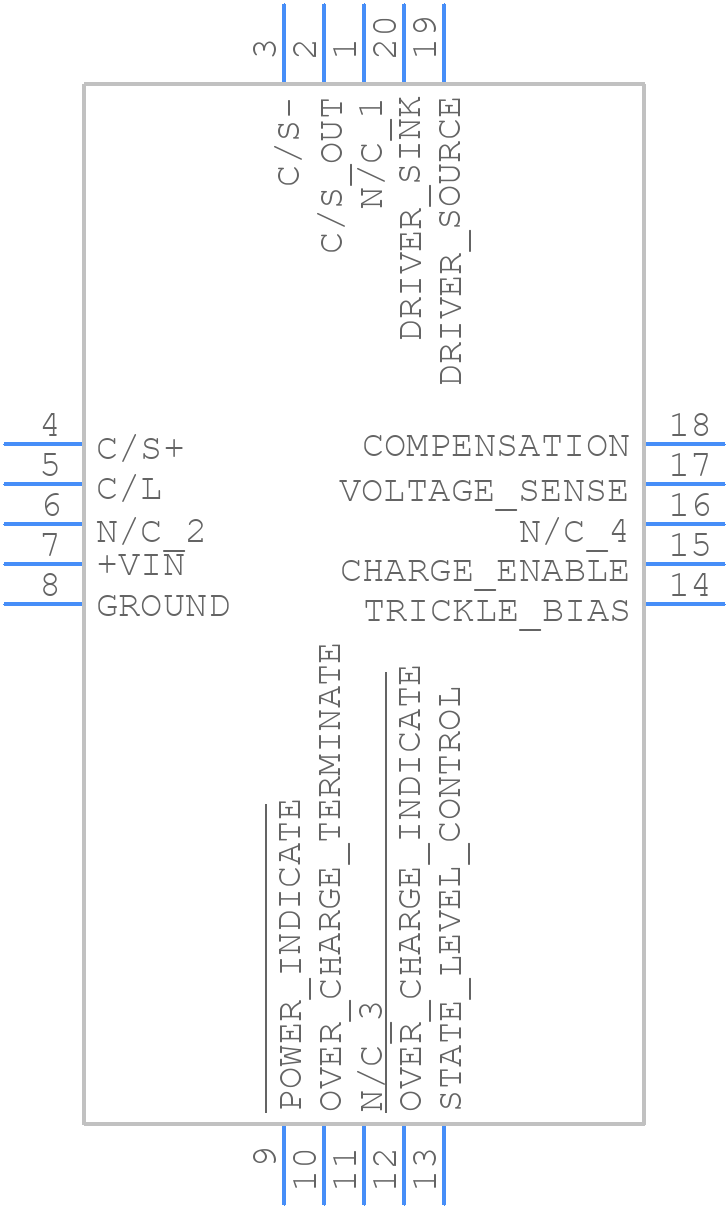

Use the download button to access the UC2906Q schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC290,
or try a keyword search, such as Power Management Circuits
