The UC3527AN is a high-frequency switching regulator, and proper PCB layout is crucial for its operation. TI recommends a 4-layer PCB with a solid ground plane, and the use of vias to connect the ground plane to the IC's ground pins. The input and output capacitors should be placed close to the IC, and the feedback resistors should be placed close to the output capacitor. A good rule of thumb is to keep the high-frequency nodes (such as the switch node) away from the low-frequency nodes (such as the output capacitor).
The choice of inductor depends on the specific application and the desired performance. TI recommends using an inductor with a high saturation current rating, low DC resistance, and low core loss. The inductor value should be chosen based on the desired output voltage, input voltage, and switching frequency. A good starting point is to use an inductor with a value between 10uH and 100uH. It's also important to consider the inductor's physical size, temperature rating, and cost.
The UC3527AN has an absolute maximum input voltage rating of 30V. However, the recommended maximum input voltage is 24V to ensure reliable operation and to prevent damage to the IC. Exceeding the recommended maximum input voltage can cause the IC to malfunction or fail.
The UC3527AN requires compensation to ensure stability. TI recommends using a type-III compensation network, which consists of a series resistor and capacitor connected between the output and the feedback pin. The values of the resistor and capacitor depend on the specific application and the desired performance. A good starting point is to use a resistor value between 1kΩ and 10kΩ, and a capacitor value between 10nF and 100nF.
The UC3527AN requires a low-ESR output capacitor to ensure stable operation. TI recommends using an output capacitor with an ESR of less than 100mΩ. A lower ESR capacitor will help to reduce the output voltage ripple and improve the overall performance of the regulator.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC3527AN Overview

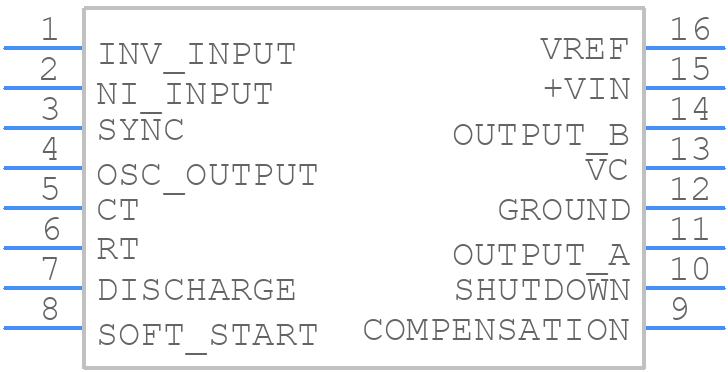

Use the download button to access the UC3527AN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC352,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
