The UC3625NG4 is a high-frequency switching regulator, and proper layout and placement are crucial for its operation. TI recommends a 4-layer PCB with a solid ground plane, and the IC should be placed close to the input capacitors. The output inductor and diode should be placed close to the IC, and the output capacitors should be placed close to the load. A good rule of thumb is to keep the high-current paths short and wide, and to minimize the loop area of the switching node.
The inductor selection for the UC3625NG4 depends on the output voltage, output current, and switching frequency. A good starting point is to use the inductor selection guide provided in the datasheet. The inductor should have a high saturation current, low DC resistance, and a high self-resonant frequency. The inductor value should be chosen to ensure that the peak inductor current is within the recommended range.
The maximum junction temperature for the UC3625NG4 is 150°C. However, it's recommended to keep the junction temperature below 125°C for reliable operation and to ensure a long lifespan. The junction temperature can be estimated using the thermal resistance and power dissipation values provided in the datasheet.
To troubleshoot the UC3625NG4, start by checking the input voltage, output voltage, and output current. Verify that the input voltage is within the recommended range, and that the output voltage is within the desired range. Check for any signs of overheating, such as a hot IC or inductor. Use an oscilloscope to check the switching node waveform and ensure that it's not ringing or oscillating excessively. Also, check the layout and placement to ensure that they meet the recommended guidelines.
The UC3625NG4 is a commercial-grade device, and it may not meet the requirements for high-reliability or automotive applications. TI offers other devices that are specifically designed for these applications, such as the UC3625QNG4, which is an automotive-grade version of the UC3625NG4. It's recommended to check the device's qualification and certification before using it in a high-reliability or automotive application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC3625NG4 Overview

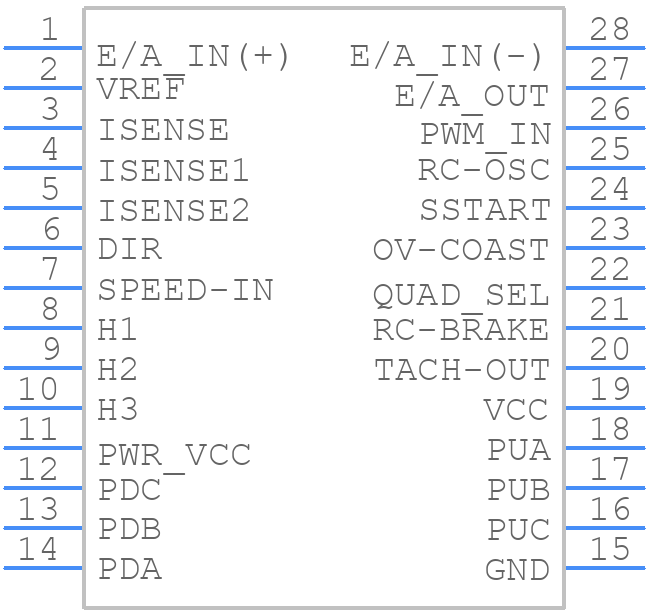

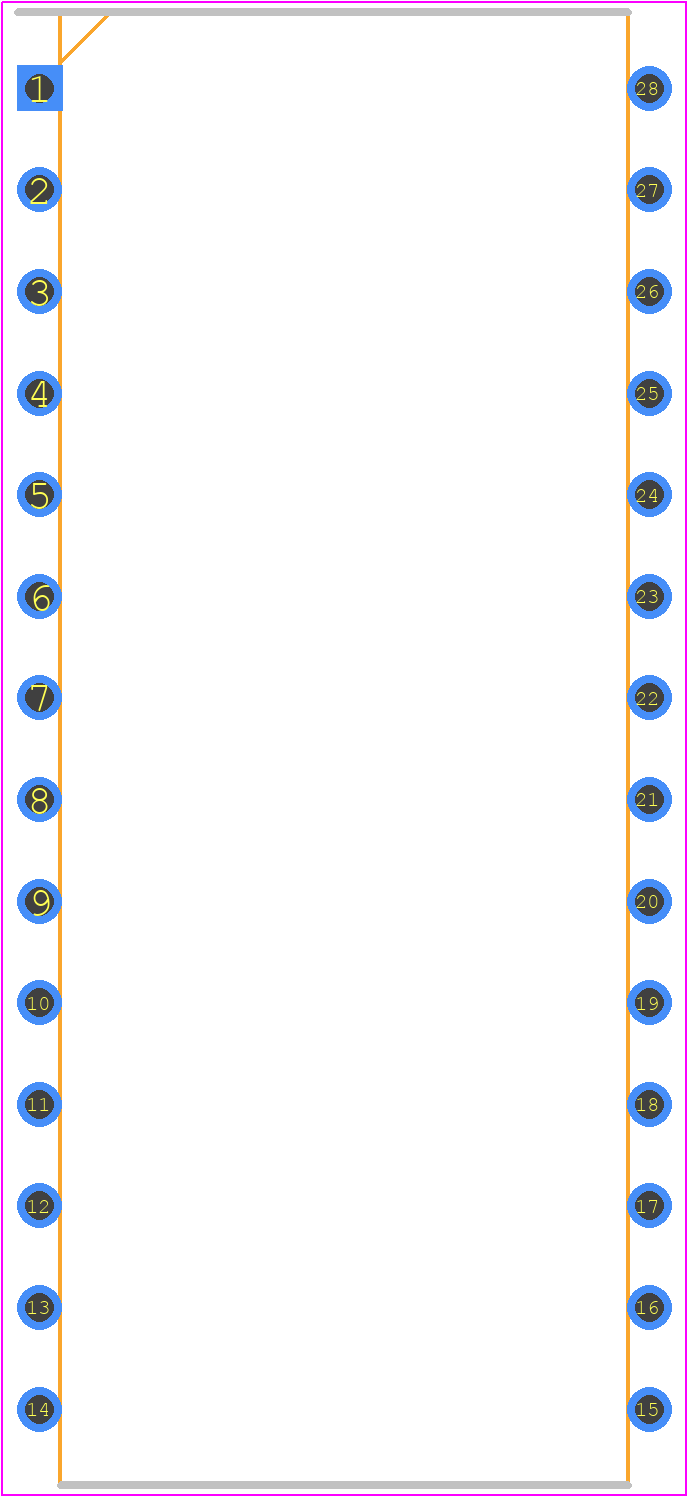

Use the download button to access the UC3625NG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC362,
or try a keyword search, such as Motion Control Electronics
