A good PCB layout for the UC3709DW involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate analog ground plane for the device and keep it isolated from the digital ground plane.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the device properly and use a sufficient amount of bypass capacitors.
The UC3709DW can handle input voltages up to 40V, but it's recommended to keep the input voltage below 30V for optimal performance and reliability.
The UC3709DW is rated for operation up to 125°C, but it's recommended to derate the device's performance and ensure proper heat sinking to prevent overheating. Additionally, the device's reliability may be affected at high temperatures, so it's essential to follow the recommended operating conditions.
To troubleshoot issues with the UC3709DW, start by checking the input and output voltages, as well as the device's operating frequency. Use an oscilloscope to check for oscillations or noise on the output. Also, verify that the device is properly decoupled and that the input and output capacitors are of high quality. If the issue persists, consult the datasheet and application notes for further guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC3709DW Overview

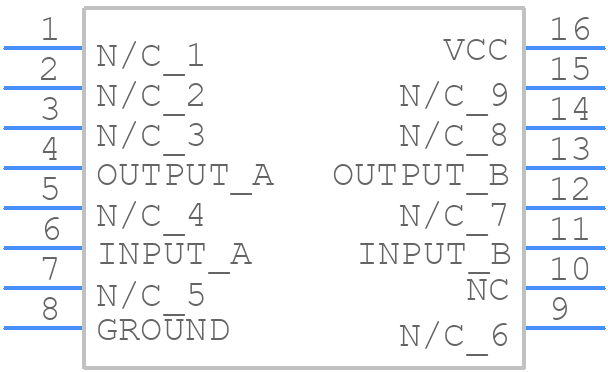

Use the download button to access the UC3709DW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC370,
or try a keyword search, such as MOSFET Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
