Texas Instruments provides a recommended PCB layout in the application note SLUA271, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The selection of input and output capacitors depends on the specific application requirements, such as voltage rating, capacitance value, and ESR. TI recommends using low-ESR capacitors with a voltage rating of at least 1.5 times the maximum input voltage. The application note SLUA271 provides more detailed guidance on capacitor selection.
The UC3709NG4 is rated for operation from -40°C to 85°C ambient temperature range. However, the device's performance and reliability may be affected at extreme temperatures. It's essential to consider the thermal management and heat dissipation in the system design to ensure reliable operation.
Yes, the UC3709NG4 is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive grade devices, and it's also suitable for use in industrial and medical applications that require high reliability.
TI provides a troubleshooting guide in the application note SLUA271, which covers common issues and their solutions. Additionally, the UC3709NG4 datasheet provides guidance on debugging techniques and error detection. It's essential to follow proper design and layout guidelines to minimize the risk of oscillation or instability.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
UC3709NG4 Overview

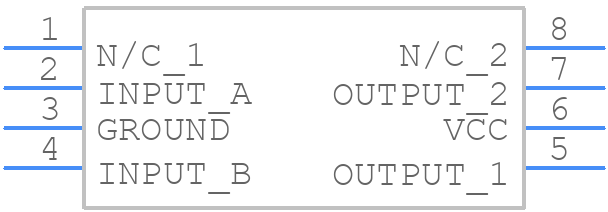

Use the download button to access the UC3709NG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC370,
or try a keyword search, such as MOSFET Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
