UC2709N - Texas Instruments

Description: Inverting High-Speed MOSFET Drivers

Download UC2709N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

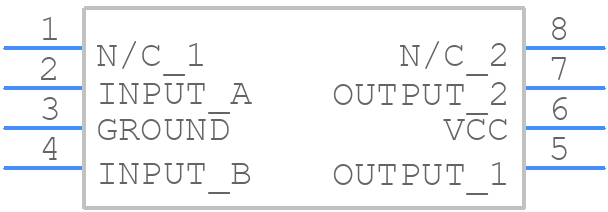

UC2709N - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - P (R-PDIP-T8)
click to zoom
3D Models
UC2709N - Texas Instruments  - 3D model - Dual-In-Line Packages - P (R-PDIP-T8)
click to zoom

UC2709N Details

  • Manufacturer Part Number:

    UC2709N

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Pin Count:

    8

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • High Side Driver:

    NO

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e4

  • Length:

    9.81 mm

  • Number of Channels:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    TOTEM-POLE

  • Output Current-Max:

    1.5 A

  • Output Peak Current Limit-Nom:

    1.5 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Current-Max:

    12 mA

  • Supply Voltage-Max:

    40 V

  • Supply Voltage-Min:

    5 V

  • Supply Voltage-Nom:

    20 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.08 µs

  • Turn-on Time:

    0.08 µs

  • Width:

    7.62 mm

UC2709N Frequently Asked Questions (FAQs)

  • The UC2709N is a high-frequency device, and proper PCB layout is crucial for its operation. TI recommends a 4-layer PCB with a solid ground plane, and the use of vias to connect the top and bottom layers. The input and output tracks should be kept short and away from each other to minimize noise and coupling. Additionally, the device should be placed close to the power supply decoupling capacitors.
  • To ensure stability, the UC2709N requires a minimum of 10nF of capacitance between the VCC pin and ground. Additionally, the device should be decoupled from the power supply using a 10uF capacitor in parallel with a 10nF capacitor. The output should also be decoupled using a 10nF capacitor. Furthermore, the layout should be designed to minimize parasitic inductance and capacitance.
  • The maximum output current of the UC2709N is 1A per channel, but this is dependent on the input voltage and the output voltage. The device can deliver higher currents for shorter periods, but sustained high currents can cause overheating and reduce the device's lifespan.
  • While the UC2709N can be used as a voltage regulator, it is not recommended. The device is designed as a high-frequency switch-mode converter, and its output voltage regulation is not as tight as a dedicated voltage regulator. Additionally, the device's output voltage is dependent on the input voltage and the transformer turns ratio, making it less suitable for voltage regulation applications.
  • To troubleshoot issues with the UC2709N, start by checking the input voltage and ensuring it is within the recommended range. Verify that the device is properly decoupled and that the layout is correct. Check for signs of overheating, such as excessive temperature or reduced output voltage. Use an oscilloscope to check the output waveform and ensure it is within the expected range. If the issue persists, consult the datasheet and application notes for further guidance.
