The UC3717AQ is a high-frequency switching regulator, and as such, it requires careful layout and placement to minimize noise and ensure proper operation. TI recommends placing the IC close to the input capacitors, using a solid ground plane, and keeping the switching node (pin 11) away from sensitive analog nodes. A good layout practice is to use a star-ground configuration and to keep the input and output capacitors close to the IC.
Choosing the right inductor for the UC3717AQ involves considering factors such as inductance value, current rating, and core material. TI recommends using an inductor with a value between 1.5uH and 3.3uH, and a current rating that exceeds the maximum output current. The core material should be ferrite or powdered iron, and the inductor should have a low DC resistance to minimize losses.
The UC3717AQ has an absolute maximum input voltage rating of 18V, but TI recommends operating the device with an input voltage no higher than 15V to ensure reliable operation and to prevent damage to the internal components.
The output voltage of the UC3717AQ can be adjusted by changing the value of the feedback resistors (R1 and R2) connected to the FB pin. The output voltage is determined by the ratio of R1 to R2, and can be calculated using the formula: Vout = 2.5V x (1 + R2/R1).
The soft-start pin (SS) on the UC3717AQ is used to control the startup sequence of the regulator. By connecting a capacitor from the SS pin to ground, the regulator's output voltage will ramp up slowly during startup, reducing the inrush current and preventing voltage overshoots.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC3717AQ Overview

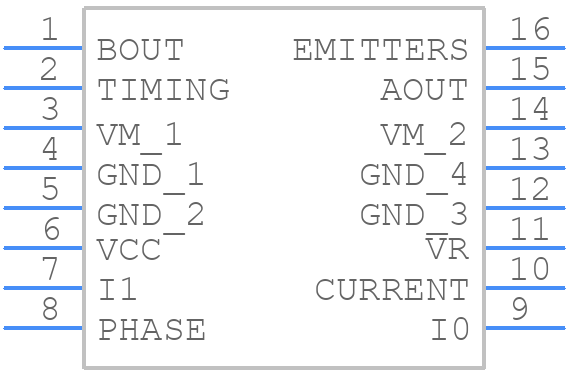

Use the download button to access the UC3717AQ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC371,
or try a keyword search, such as Motion Control Electronics
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
