Part Image

UC3824N - Texas Instruments

Description: Texas Instruments UC3824N, Dual PWM Soft Switching Controller, 1000 kHz, 16-Pin PDIP

Download UC3824N Model

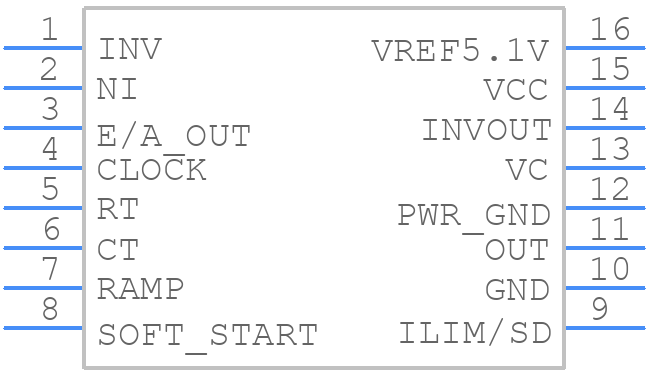

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
UC3824N - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N (R-PDIP-T16)
click to zoom
3D Models
UC3824N - Texas Instruments  - 3D model - Dual-In-Line Packages - N (R-PDIP-T16)
click to zoom

UC3824N Details

  • Manufacturer Part Number:

    UC3824N

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    DIP-16

  • Pin Count:

    16

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO OPERATES IN CURRENT MODE

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT/VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    30 V

  • Input Voltage-Min:

    10 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e4

  • Length:

    19.3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Output Current-Max:

    1.5 A

  • Output Voltage-Max:

    5.15 V

  • Output Voltage-Min:

    5.05 V

  • Output Voltage-Nom:

    5.1 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Voltage-Max (Vsup):

    30 V

  • Supply Voltage-Min (Vsup):

    9.2 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    1000 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

UC3824N Overview

Use the download button to access the UC3824N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC382, or try a keyword search, such as Switching Regulator or Controllers

Parts related to UC3824N

Showing 0 results

UC3824N Alternates

Showing results

Image Part Number Model
Part Image UC2824N Rochester Electronics LLC

1.5 A SWITCHING CONTROLLER, 1000 kHz SWITCHING FREQ-MAX, PDIP16, PLASTIC, DIP-16

Part Image UC3824J Texas Instruments

2A SWITCHING CONTROLLER, 1000kHz SWITCHING FREQ-MAX, CDIP16

Part Image UC3824NG4 Texas Instruments

High Speed PWM Controller 16-PDIP 0 to 70

Part Image UC2824J Texas Instruments

1.5A SWITCHING CONTROLLER, 1000kHz SWITCHING FREQ-MAX, CDIP16, CERAMIC, DIP-16
