The UC3825N is a high-frequency device, so it's crucial to follow good layout practices to minimize noise and ensure reliable operation. TI recommends placing the IC close to the input capacitors, using a solid ground plane, and keeping the feedback loop as short as possible.
The choice of external components, such as the input and output capacitors, inductor, and resistors, depends on the specific application and operating conditions. TI provides a detailed component selection guide in the datasheet, and engineers can also use TI's online tools, such as the Power Stage Designer, to help with component selection.
The UC3825N is rated for operation from -40°C to 85°C, but the actual operating temperature range may be limited by the specific application and the thermal design of the system. Engineers should ensure that the device is properly heat-sinked and that the system is designed to operate within the specified temperature range.
TI provides a detailed troubleshooting guide in the datasheet, which covers common issues and their solutions. Engineers can also use TI's online resources, such as the Power Management Forum, to ask questions and get help from experts and other users.
Yes, the UC3825N can be used in a synchronous rectification topology, but it requires careful design and layout to ensure proper operation. TI provides application notes and design guides to help engineers implement synchronous rectification with the UC3825N.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC3825N Overview

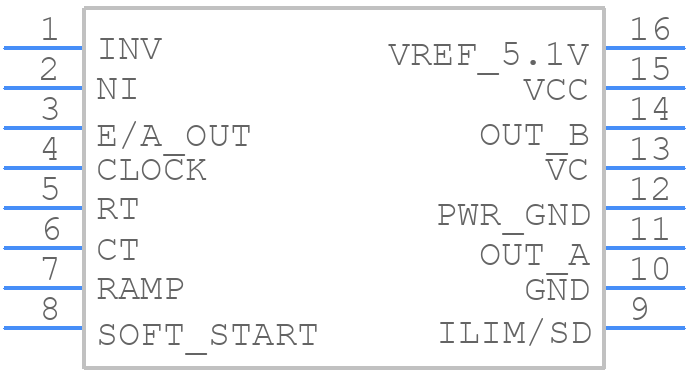

Use the download button to access the UC3825N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC382,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
