The UC3825NG4 is a high-frequency switching regulator, and proper PCB layout is crucial for its operation. TI recommends a 4-layer PCB with a solid ground plane, and to keep the high-current paths short and wide. Additionally, the input and output capacitors should be placed close to the IC, and the feedback network should be routed away from the switching node.
The UC3825NG4 requires a type-III compensation network to ensure stability. TI recommends using a resistive divider to set the gain, and a capacitor to set the pole frequency. The datasheet provides a compensation calculator to help with the design. Additionally, the UC3825NG4 has a built-in soft-start feature that helps to reduce the inrush current during startup.
The UC3825NG4 has an absolute maximum input voltage rating of 30V, but the recommended operating input voltage range is 8V to 28V. Exceeding the maximum input voltage can cause damage to the IC.
Yes, the UC3825NG4 can be used in a synchronous rectification configuration to improve efficiency. However, this requires additional external components, such as a synchronous rectifier FET and a Schottky diode. TI provides application notes and design examples to help with the implementation.
The UC3825NG4 has built-in overcurrent protection (OCP) and overvoltage protection (OVP) features. The OCP threshold can be set using an external resistor, and the OVP threshold is fixed at 35V. Additionally, TI recommends using external protection components, such as a fuse or a TVS diode, to protect the IC from external fault conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC3825NG4 Overview

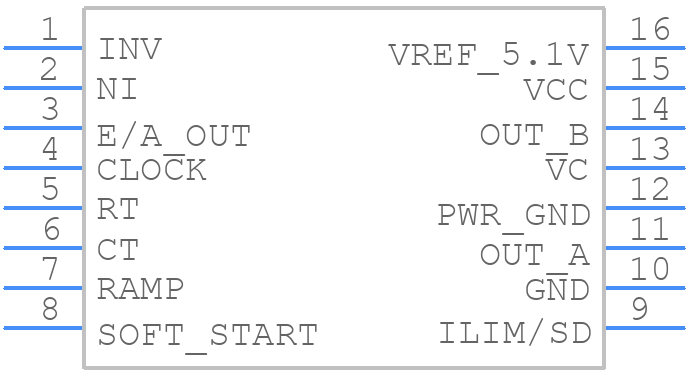

Use the download button to access the UC3825NG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC382,
or try a keyword search, such as Switching Regulator or Controllers
