The UC3852N is a high-frequency device, and proper layout and placement are crucial to minimize EMI and noise. TI recommends a 4-layer PCB with a solid ground plane, and placing the IC close to the input capacitors and output inductors. Additionally, keep the high-current paths short and use a common ground point for the input and output stages.
To optimize the UC3852N for low standby power consumption, ensure that the input voltage is as low as possible, and use a high-value resistor (e.g., 1MΩ) between the EN pin and VCC. Also, consider using a low-dropout linear regulator for the VCC supply, and minimize the number of external components.
The maximum allowed voltage on the VCC pin is 18V. To protect the UC3852N from overvoltage, use a voltage clamp or a zener diode (e.g., 1N4733A) between the VCC pin and ground. Additionally, consider using a voltage supervisor (e.g., TLV703) to monitor the VCC voltage and reset the IC in case of an overvoltage event.
To ensure reliable startup and shutdown of the UC3852N, use a soft-start circuit (e.g., a resistor-capacitor network) to slowly ramp up the input voltage. Also, ensure that the EN pin is properly biased during startup and shutdown, and consider using a voltage supervisor to monitor the input voltage and reset the IC if necessary.
The UC3852N has a maximum junction temperature of 150°C. To prevent overheating, ensure good thermal conduction between the IC and the PCB, and consider using a heat sink or thermal interface material. Also, minimize the power dissipation by optimizing the design for high efficiency, and consider using a thermal monitoring IC (e.g., TMP102) to monitor the temperature.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC3852N Overview

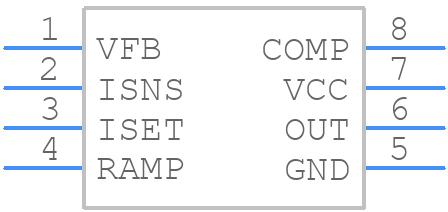

Use the download button to access the UC3852N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC385,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
