Texas Instruments provides a recommended PCB layout in the application note SLUA271, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The input capacitor selection depends on the input voltage, output voltage, and output current requirements. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the maximum input voltage, and a capacitance value of 10-22 μF. Additionally, the capacitor's ESR (Equivalent Series Resistance) should be low enough to minimize voltage ripple and ensure stable operation.
The UC3903DWTR is rated for operation from -40°C to 125°C ambient temperature range. However, the device's performance and reliability may be affected at extreme temperatures, and proper thermal management is recommended to ensure reliable operation.
Yes, the UC3903DWTR is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive applications and is also suitable for use in industrial and medical devices that require high reliability.
Texas Instruments provides a troubleshooting guide in the application note SLUA272, which covers common issues and their possible causes, as well as recommended solutions and debugging techniques. Additionally, engineers can use oscilloscopes and other diagnostic tools to identify and isolate the problem.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC3903DWTR Overview

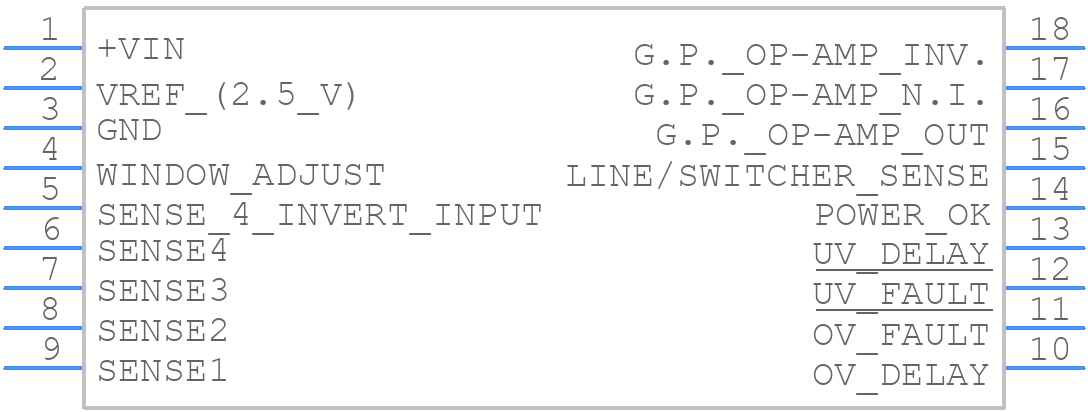

Use the download button to access the UC3903DWTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC390,
or try a keyword search, such as Power Management Circuits
